Prikazujemo 91–105 od 107 rezultata
-
Optičke mreže pasivne

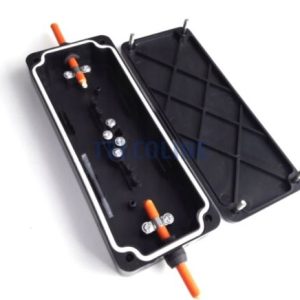

NFO Splice Closure, 2 inputs outputs, 4F, Horizontal
NFO Splice Closure, 2 inputs outputs, 4F, Horizontal – perfect for FTTH network installations. It is the first choice when it is necessary to repair DAC cables It can be used directly in the ground, in wells, cable ducts, cable reserve bunkers, as well as in external installations. Dimensions: 165x65x25 mm , Material: PC ABS, UV resistant casing, Protection class: IP65 Cable entry seals through rubber sleeves, Sealing of the socket through a gasket around the entire circumference, Clamps fixing the incoming cable, Places for fiber optic splices: 2 4 Kit components: Repair sleeve, Splice covers: 4 (length 40 mm), Mounting pins and screws: 2
Šifra: NFO-SCL-61025 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs, 12 outputs, Wall mount
NFO Splice Closure, 2 inputs, 12 outputs, Wall mount – Technical data: Dimensions: 70mm x 240mm ( 10mm lock) x 230mm Weight: approx. 1.4 kg Operating temperature in the range of -40 60 C Integrated splice tray – tiltable Protection level: IP65 Color: gray Set Components: Splice covers, Plastic clamps, Protective tube for distributing fibers, Pins and screws for wall mounting, Key for closing the door, Insulating tape, Rubber sleeves for subscriber outputs
Šifra: NFO-SCL-61037 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs, 16 outputs, Wall or Pole mount
NFO Splice Closure, 2 inputs, 16 outputs, Wall or Pole mount – Working temperature in the range -40 60 C Tray for welds – tilting Protection degree: IP65 Equipment: Splice covers, Plastic clamps, Protective tube for the distribution of fibers, Output chokes for consumer cables, Pins and screws for wall mounting, Key for closing the door
Šifra: NFO-SCL-61010 -
Optičke mreže pasivne

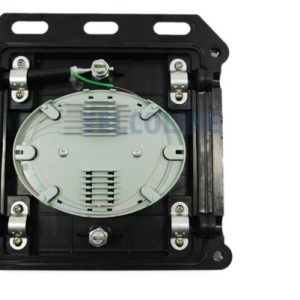

NFO Splice Closure, 4 inputs outputs, 12F Horizontal
NFO Splice Closure, 4 inputs outputs, 12F Horizontal – Weight: 0.5 kg Number of trays: 1x, 12 splices Number of ports: 4 (2 x input, 2 x output) Int. ports: 2 x 12.6 mm, 2 x 16.3 mm (It is possible to put plugs on unused ports) Dimensions: 215 x 202 x 43 mm Housing material: Polypropylene (PP) Working temperature: – 40 C 65 C Protection class: IP68 Elements of the set:Fiber optic cassettes (trays) 1x, Splice covers, Clamping bands, Insulating tape, Muffle grip, Allen key for screws, Plugs for large ports, Plastic key for screws holding the cable
Šifra: NFO-SCL-61020 -
Optičke mreže pasivne

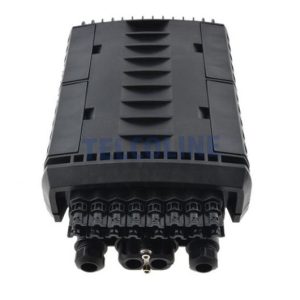

NFO Splice Closure, 4 inputs, 16 outputs, Wall and pole mount
NFO Splice Closure, 4 inputs, 16 outputs, Wall and pole mount – ideal solution for overhead, underground and sewage installations The device has 4 tiltable fiber optic trays with the possibility of arranging up to 24 splices on each Equipped with space for mounting 24 SC simplex or LC duplex fiber optic adapters Technical data: Dimensions: 388mm x 242mm x 128mm Material: Polypropylene PP Weight: approx. 4 kg Color: Black Number of splice trays: 4 Max. number of splices: 96 Number of places for adapters: 24 x SC simplex or LC duplex Protection level: IP67 Operating temperature: from -30 C to 80 C The set includes: Splice covers (length 60 mm), Protective tubes for fiber distribution, Metal clamps, Metal support for sleeve installation, Mounting screws, Insulating tape (black), Plastic cable ties, Through port caps, Alkopad (alcohol wipe), Port gland wrench
Šifra: NFO-SCL-61038 -
Optičke mreže pasivne

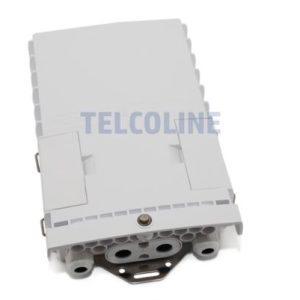

NFO Splice Closure, 4 inputs, 16 outputs, Wall or Pole mount
NFO Splice Closure, 4 inputs, 16 outputs, Wall or Pole mount – four inputs for bus cables and 16 outputs for subscriber cables Its design allows easy installation of splitters and adapters as well as good access to splice placement and fiber organization. Dimensions: 286mm x 182mm x 78mm Weight: approximately 1 kg Operating temperature in the range -40 60 C Integrated splice tray – tiltable Number of trays: 3×12 splices (32 welds) Protection level: IP65 White color Set Components: Splice covers, Plastic clamps, Protective tube for distributing fibers, Pins and screws for wall mounting, Key for closing the door, Insulating tape
Šifra: NFO-SCL-61035 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs, 24 outputs, Wall and pole mount
NFO Splice Closure, 4 inputs, 24 outputs, Wall and pole mount – ideal solution for overhead, underground and sewage installations. The device has 6 tiltable fiber optic trays with the possibility of arranging up to 24 splices on each Technical data: Dimensions: 388mm x 242mm x 150mm Material: Polypropylene PP Weight: approx. 5 kg Color: Black Number of splice trays: 6 Max. number of splices: 144 Number of places for adapters: 24 x SC simplex or LC duplex Max. diameters of input cables: 2×18 mm, 2×21 mm Diameters of holes in rubber sleeves for client cables: 3 mm Protection level: IP67 Operating temperature: from -30 C to 80 C Included in the set: Splice covers (60 mm long), Protective tubes for fiber distribution, Metal clamps, Metal bracket for installing the sleeve, Mounting screws, Plastic clamps, Through port caps, Alkopad (alcohol wipe), Port choke wrench
Šifra: NFO-SCL-61039 -
Optičke mreže pasivne
NFO Splice Closure, 4 round and 1 oval input output, pole and wall mount
NFO Splice Closure, 4 round and 1 oval input output, pole and wall mount – Height: 445 mm, Hood diameter: 160 mm, Housing material: Polypropylene (PP), Number of trays: 2, Maximum and number of trays: 4, Maximum number of welds: 96 (4×24), Number of ports: 4 (4 round 1 oval), Inner diameter. round ports: 20 mm, Internal dimensions oval port: 33×63 mm, Working temperature: -35 C 65 C, Protection class: IP68 Kit components: 2 pcs fiber optic cassettes (trays), Welding covers, Heat-shrinkable cable covers, Fiber clip , Clamping bands (steel) , Wall bracket, Mounting clamps, Insulating tape, Numbering stickers
Šifra: NFO-SCL-61014 -
Optičke mreže pasivne

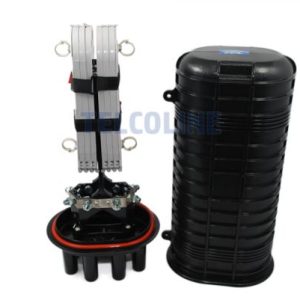

NFO Splice Closure, 6 round entries, 1 oval, 6 trays, 480mm
NFO Splice Closure, 6 round entries, 1 oval, 6 trays, 480mm – For overhead, underground and sewage systems Made out of polypropylene (PP), which guarantees resistance to UV radiation, low and high temperatures and substances present in the teletechnical sewage system Height: 480 mm Hood dimensions : 155 mm x 205 mm Housing material: Polypropylene (PP) Number of trays: 6 Maximum and number of trays: 6 Maximum number splices: 144 (6×24) Number of ports: 7 (6 round 1 oval) Inner diameter. round ports: 22.85 mm Internal dimensions oval port: 39×69 mm Working temperature: – 40 C 65 C Protection class: IP68 Kit components: 6 pcs fiber optic cassettes (trays) Welding covers Heat- shrinkable cable covers Fiber clip Clamping bands (steel) Wall bracket Mounting clamps Insulating tape Numbering stickers
Šifra: NFO-SCL-61026 -
Optičke mreže pasivne
NFO Splice Sleeve 2,5 mm, length 45 mm, 100 kom
NFO Splice Sleeve 2,5 mm, length 45 mm – 100 kom Sheath length: 45 mm Sheath opening diameter: 1.3 mm – 0.1 mm Outer sheath diameter: 2.5 mm – 0.3 mm Reinforcement bar diameter: 1.2 mm Shrink temperature minimum: 90 C Shrink time: about 2 minutes (at temp. 110 C )
Šifra: NFO-TOOL-80033-100 -
Optičke mreže pasivne
NFO Splice Sleeve 2,5 mm, length 60 mm, 100 kom
NFO Splice Sleeve 2,5 mm, length 60 mm – 100 kom Sheath length: 60 mm Sheath opening diameter: 1.3 mm – 0.1 mm Outer sheath diameter: 2.5 mm – 0.3 mm Reinforcement bar diameter: 1.2 mm Shrink temperature minimum: 90 C Shrink time: about 2 minutes (at temp. 110 C )
Šifra: NFO-TOOL-80034-100 -
-
Optičke mreže pasivne

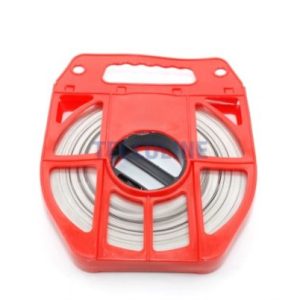

NFO Steel tape, stainless steel C201, 50 m (20×0.7 mm)
NFO Steel tape, stainless steel C201, 50 m (20×0.7 mm) – used to create solid fastening bands in many industries Compact housing with a handle that facilitates unwinding and carrying the tape Installation of overhead network components such as brackets, handles, hooks Possible use in various industries: telecommunications, energy, mining, road construction, transport, agriculture, forestry, construction, industry (chemical, petrochemical, military, electrical, automotive)
Šifra: NFO-TOOL-80069
