NaviaTec Fiber Optics

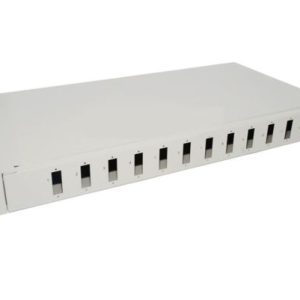

NFO Patch Panel 1U 19″ – 12x SC Duplex, Closed, 1 cassette – Weight: 2 kg Number of trays: 1 Tray capacity: 12 24 welds Maximum number of adapters: 12 (SC Duplex) Maximum number of trays: 3 Material: Cold-rolled steel – powder painted in light grey Dimensions: Installation height: 1U (44.45 mm), Depth: 250 mm, Mounting method (length): 19 ” profile Diameter of holes on the back: Rubber 2×20 mm, for Cable gland: 2 x PG.13.5 Kit components: One fiber optic tray, Cable gland: 2 x PG.13.5, Mounting screws for adapters: 38 pcs, Plastic clamps: 2 pcs, Spare screws: 8pcs (small) and 2pcs (large), Spare nuts: 6pcs (small) and 3pcs (large), Splice covers: 1pack 24pcs

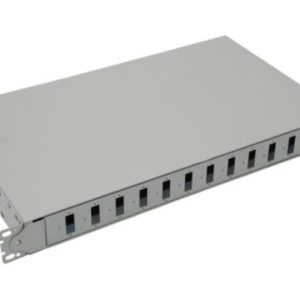

NFO Patch Panel 1U 19″ – 12x SC Simplex LC Duplex, Slide-out on rails, 1 cassette – Weight: 2 kg – Number of trays : 1 – Trays capacity: 12 24 welds – Maximum number of adapters: 12 (SC Simplex, LC Duplex) – Material: Cold-rolled steel – powder coated light gray – Maximum number of trays: 3 – Dimensions: – Mounting height: 1U (44.45 mm) – Depth: 250 mm – Mounting method (length): 19 ” profile – Diameter of holes on back plate: 20 mm Supplied with: – Tray holder – Cable glands: 2 x PG.13.5 – Splice covers : 12 – Mounting screws for adapters: 24 – Plastic cable ties: 4 – Elements (bolts) blocking the extension: 2

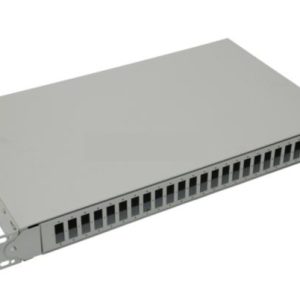

NFO Patch Panel 24 port SC duplex – Weight: 2 kg Number of trays included: 2 Tray capacity: 12 24 welds Max. Number of welds: 48 Maximum number of adapters: 24 SC Duplex Maximum number of trays: 3 Mounting height: 1U Depth: 250 mm Length: 19 ” Diameter of holes on the back: 20 mm Supplied with: Trays: 2 Cable glands: 2 x PG.13.5 Splice sleeves: 48 Mounting screws for adapters: 48 Plastic bands clamps: 4 Elements blocking the extensions: 2

NFO Patch Panel 1U 19″ Closed – SET Multimode 24x LC OM4 Duplex Adapter, 48x LC OM4 Pigtails, 2x Splice trays

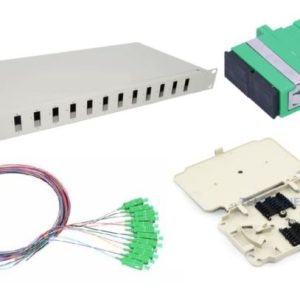

NFO Patch Panel 1U 19″ Closed – SET Singlemode 12x SC APC Duplex Adapter, 24x SC APC Pigtails, 1x Splice tray
