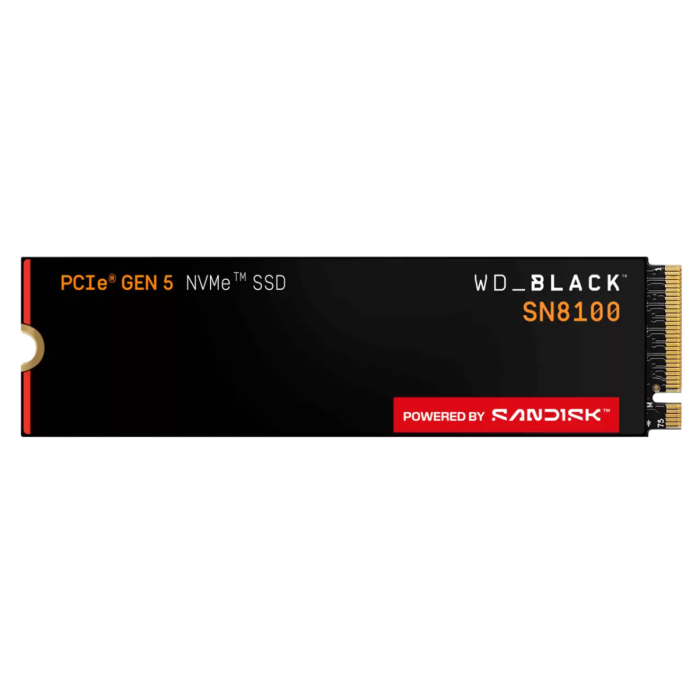

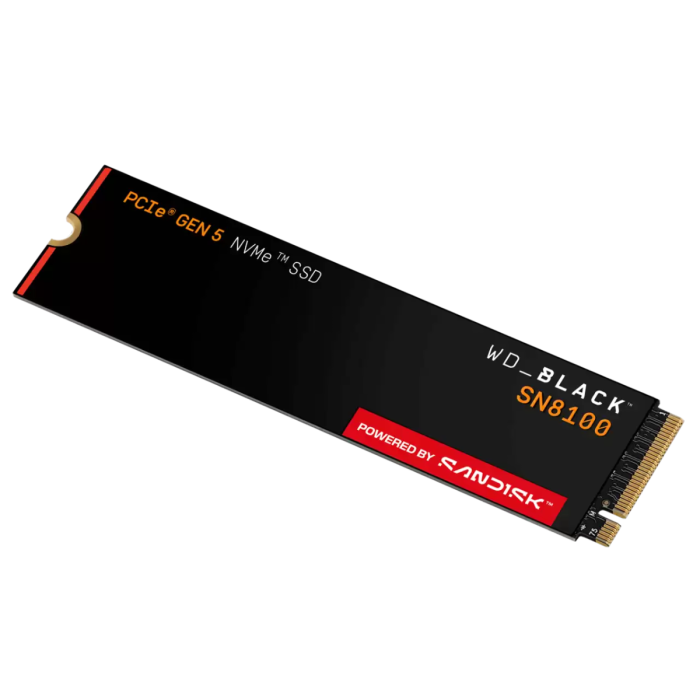

WD 8TB Black SN8100 M.2 2280 PCI-e 5.0 NVMe 2.0 SSD drive

The WD BLACK SN8100 series model WDS800T1X0M offers 8 TB of capacity in a standard M.2 2280 SSD format and supports PCIe® Gen 5.0×4 (NVMe™) interface, enabling exceptional speed and efficiency in data transfer. With sequential read speeds of up to approximately 14,900 MB/s and high-magnitude sequential write speeds, the SSD is suitable for the most demanding applications, from gaming and content creation to high-load workstations. It uses TLC 3D CBA NAND technology and includes a DRAM cache, which increases performance and reliability. The SSD is compatible with motherboards with an M.2 2280 slot and supports PCIe Gen4/Gen3 backward compatibility. Its performance makes it the ideal choice for users who demand maximum performance and future-proofing.

Specifications:
Model: WDS800T1X0M
Capacity: 8 TB
Form factor: M.2 2280
Interface: PCIe® Gen 5.0×4 (NVMe™)
Sequential read: up to ≈ 14,900 MB/s
Sequential write: up to ≈ 13,200 MB/s
Random read (4 KB): up to ≈ 2.2 M IOPS
Random write (4 KB): up to ≈ 2.4 M IOPS
Writing technology: TLC 3D CBA NAND
Endurance (TBW): 4800 units
Hardware encryption: yes (TCG Opal 2.02)
MTBF: approximately 1,750,000 hours
Compatibility: Windows 10+, Laptop PCs (without cooler only) and Desktop PCs
Dimensions (L × W × H): 80 × 22 × 2.38 mm
Weight: approximately 8.6 g
Certifications: BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI

Package contents: SSD WDS800T1X0M, documentation
