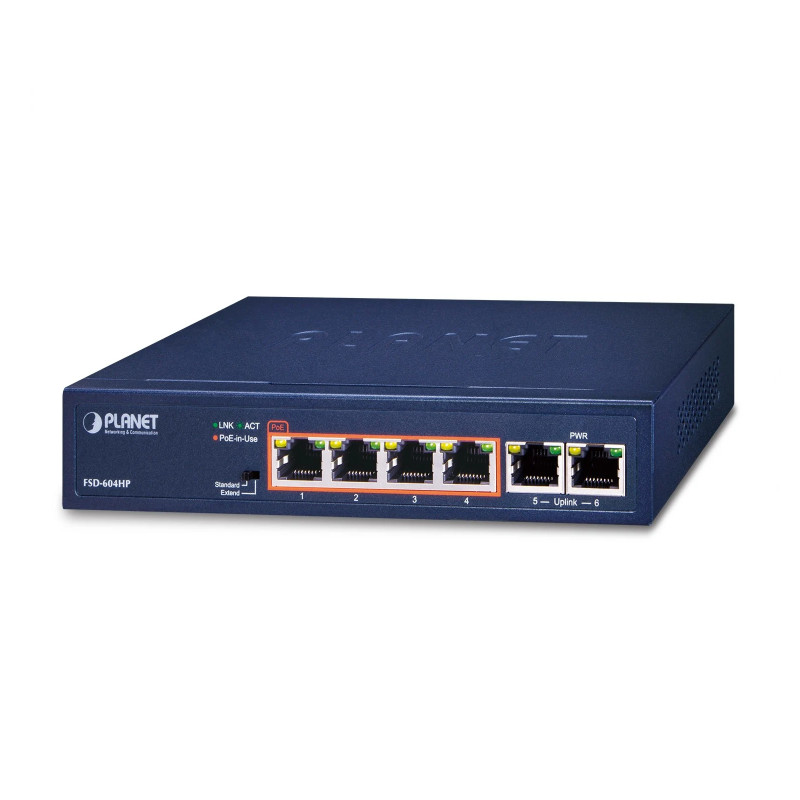

PLANET mrežni preklopnik 4-port 10/100TX 802.3at PoE + 2-port 10/100TX

Šifra: FSD-604HP

Jamstvo (mj): 24 mjeseca


Dostupno kod dobavljača. Isporuka 3-5 dana!


Dostupno kod dobavljača. Isporuka 3-5 dana!

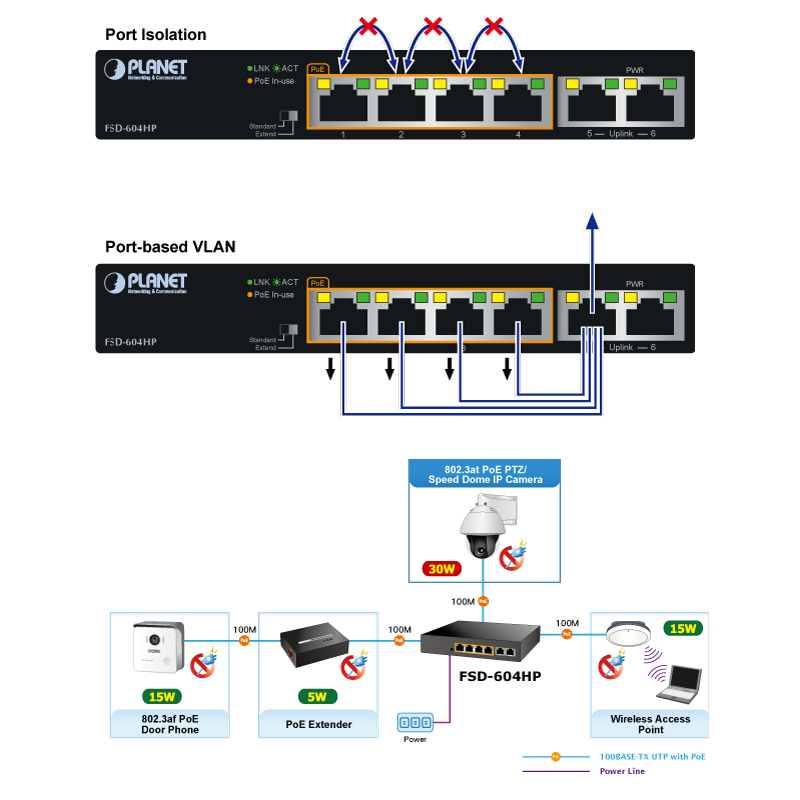

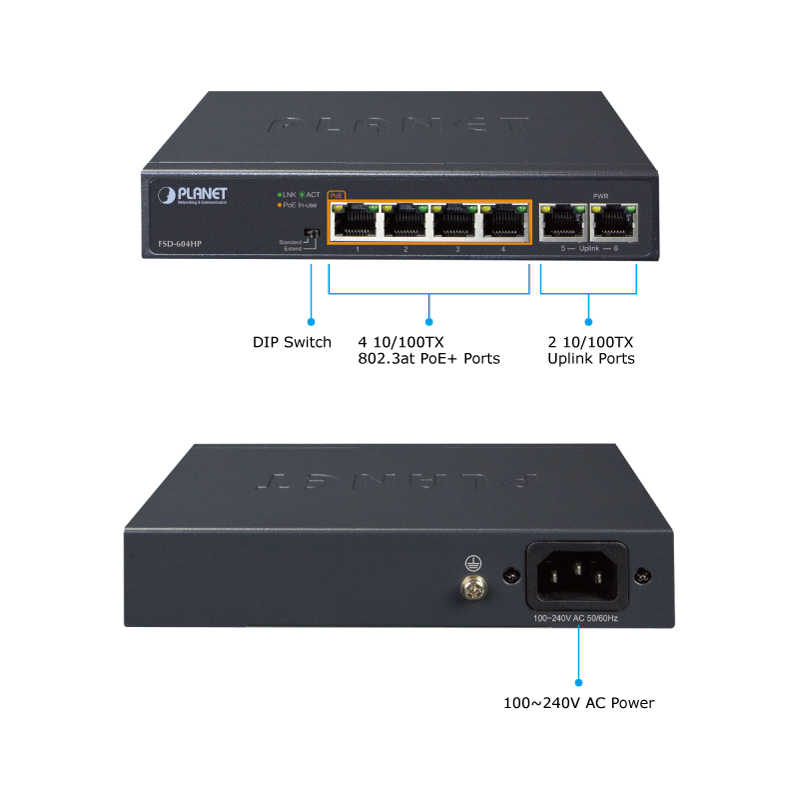

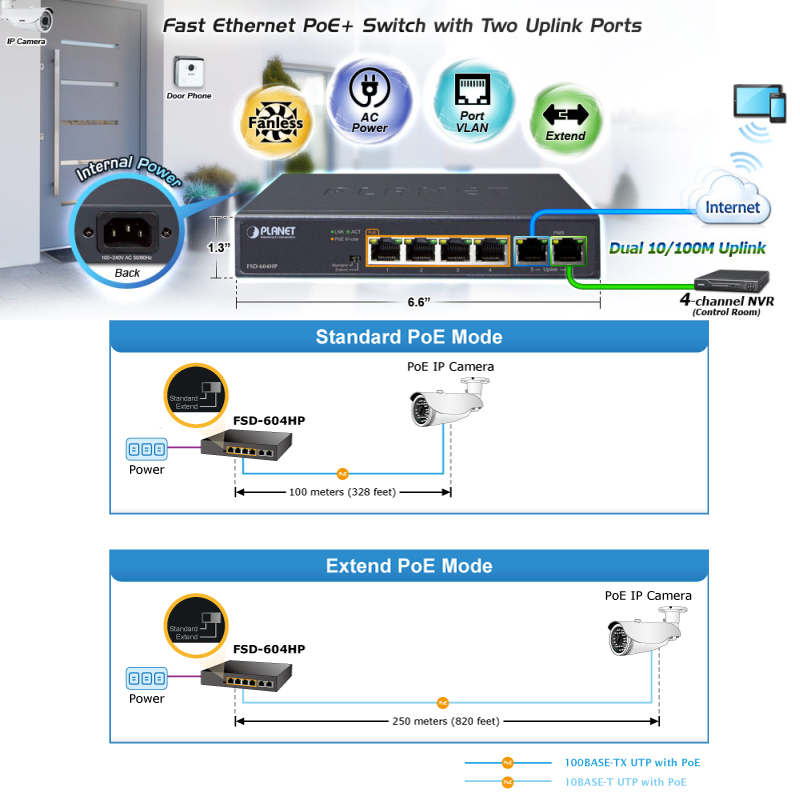

– Centralized Power Distribution for HD IP Surveillance System * PLANET FSD-604HP Desktop Switch provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost * With dual 10/100BASE-TX uplink ports, the recorded HD video files from the 4 PoE IP cameras powered by the FSD-604HP are saved in the 4-channel NVR system * Its surveillance software performs comprehensive security monitoring and manages the surveillance system in the local LAN or remote site via Internet – 4-port PoE, 60-watt PoE budget – Two 10/100Mbps uplink ports – Can extend distance of up to 250m in the extend mode – 30-watt power output at speed of 10Mbps – Internal AC power, fanless design – Innovative Port-based VLAN Protection – Distance Extended for Transmission of Power and Data – Robust Protection – Environment-friendly, Fanless Design for Silent Operation – Easy Cable Connection Specifications HARDWARE SPECIFICATIONS – Network Connector: 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX – PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port-1 to Port-4) – LED Display: * System: Power (Orange) * Per PoE port: PoE (Orange, Port 1 to Port 4), LNK/ACT (Green, Port 1 to Port 6) – DIP Switch: * 100m distance in standard mode * 250m distance in extend mode (based on the cable category) – Switch Architecture: Store and Forward switch architecture – MAC Address Table: 2K MAC address table with auto learning function – Switch Fabric: 1.2Gbps – Switch Throughput: 0.89Mpps @64bytes – Maximum Packet Size: 1536bytes – Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex – Power Requirements: AC 100-240V, 2A max. – Power Consumption: Max. 63 watts, 214 BTU – Dimensions (W×D×H): 168×93×32 mm – Weight: 499g – ESD Protection: * Contact discharge of +/-4KV DC * Air discharge of +/-6KV DC – Surge Immunity: +/-4KV POWER OVER ETHERNET – PoE Standard: * IEEE 802.3af Power over Ethernet/PSE * IEEE 802.3at Power over Ethernet Plus/PSE – PoE Power Supply Type: End-span – Power Pin Assignment: 1/2(+), 3/6(-) – PoE Power Output: * Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) * Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) – PoE Power Budget : 0 watts – Number of PDs, 7 watts: 4 – Number of PDs, 15.4 watts: 4 – Number of PDs, 30 watts: 2 STANDARD CONFORMANCE – EMI Safety: CE, FCC – Standard Compliance: * IEEE 802.3 Ethernet * IEEE 802.3u Fast Ethernet * IEEE 802.3x Flow Control * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus ENVIRONMENT – Operating Environment: 0 to 50 degrees C – Storage Environment: -10 to 70 degrees C – Operating Humidity: 5 to 95%, relative humidity, non-condensing – Storage Humidity: 5 to 95%, relative humidity, non-condensing
