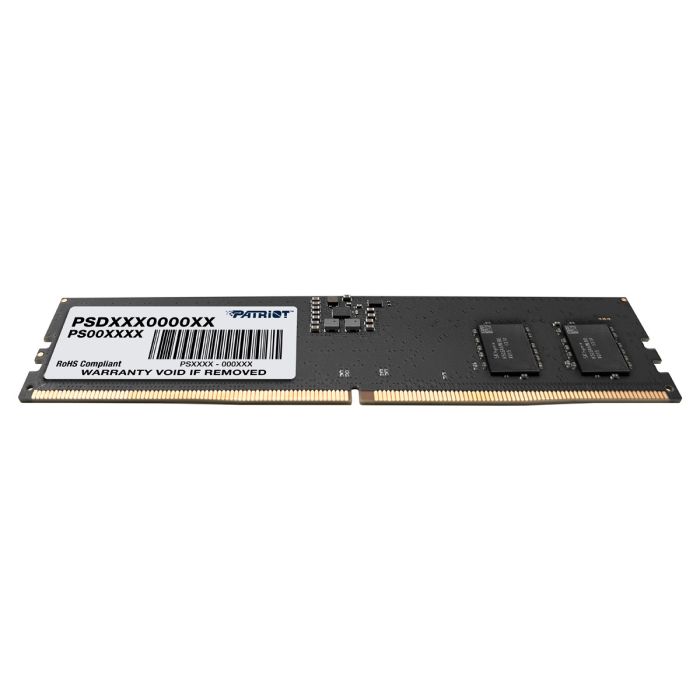

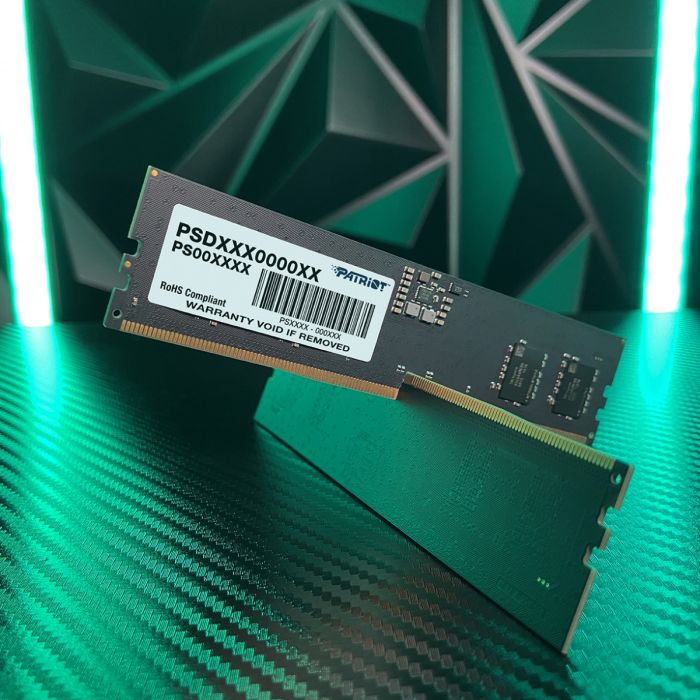

Patriot Signature Line 16GB DDR5-5600 DIMM CL46, 1.1V

Patriot Signature Line DDR5 16GB (1×16GB) UDIMM is designed for improved performance on the latest Intel platforms. With a frequency of 5600MHz and a latency of CL46, the module delivers higher throughput and lower power consumption at only 1.1V. The built-in PMIC provides intelligent power management, while the module includes On-Die ECC and a temperature sensor for greater stability and protection against overheating. It is intended for system integrators and users who want to reliably expand the performance of their system with DDR5 technology.

Specifications

• Series: Signature Line DDR5

• Capacity: 16GB (1×16GB)

• Module type: 288-pin UDIMM, single-sided

• Technology: DDR5, Non-ECC Unbuffered

• Frequency: 5600MHz (PC5-44800)

• Latency: 46-46-46-90

• Voltage (VDD): 1.1V

• Features: On-Die ECC, PMIC, temperature sensor

• Compatibility: latest Intel platforms

• Module weight: 17 g

• Module dimensions: 0.2 cm (L) × 13.3 cm (W) × 3.2 cm (H)

• Certifications: RoHS
