Ubiquiti PoE++ Adapter (60W)

– An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.

Features
– Delivers up to 60W of PoE++
– Even more power for UA Hub, G4 PTZ, and other PoE++ devices
– Surge, peak pulse, and overcurrent protection
– Contains RJ45 data input, AC cable with earth ground, and PoE++ output
– LED indicator for status monitoring

Specifications
– Model: U-PoE++
– Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3″)
– Weight: 210 g (7.4 oz)
– Output voltage: 48V DC 1.25A
– LAN activity indicator: No
– Gigabit LAN port: Yes
– Remote reset capability: No
– Reset button: No
– Rated voltage: 100—240V AC 50/60Hz
– Input current:
• 1.3A 120V AC
• 0.75A 230V AC
– Inrush current
• <100A peak 120V AC
• <200A peak 230V AC
– Efficiency: 85+%
– Output ripple: 1% max.
– Switching frequency: 65 kHz
– Line regulation: ? 1%
– Load regulation: ? 3%
– 2-pair powering: No
– 4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

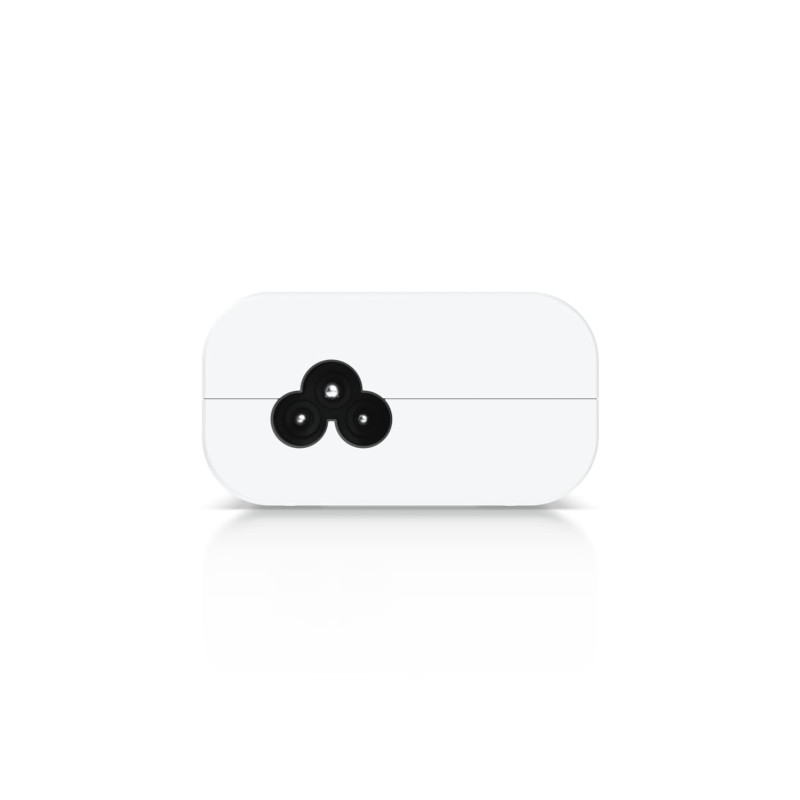

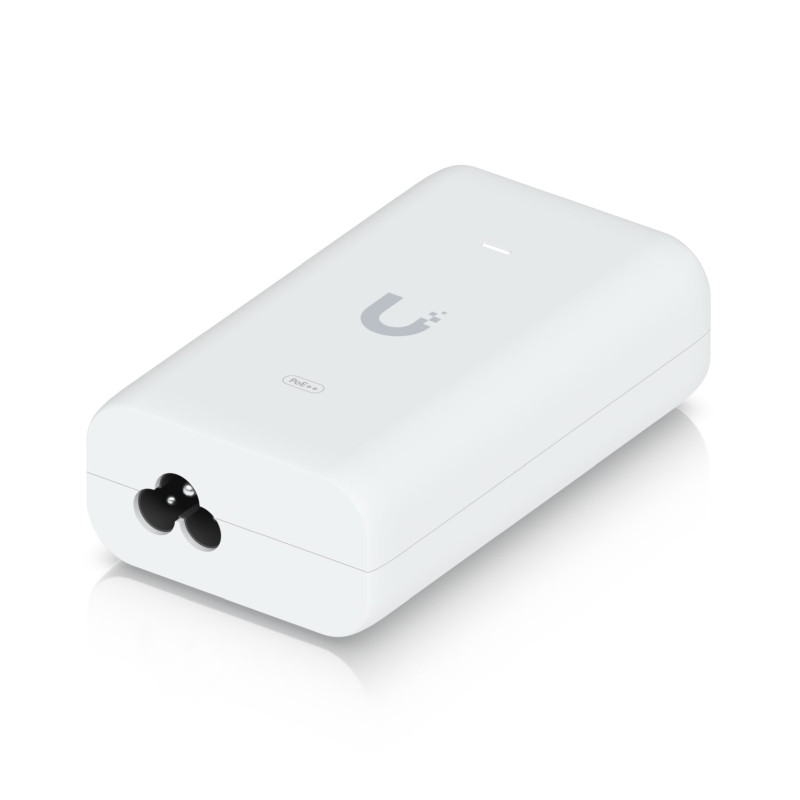

– AC connector: IEC-320 C6
– Data In / PoE: RJ45 shielded socket
– Surge protection: Difference and common mode
– Clamping protection: 11V data, 60V power
– Max. surge discharge: 1500A (8/20 µs) power
– Peak pulse current: 36A (10/1000 µs) data
– Shunt capacitance: <5 pF data
– Response time: <1 ns
– Power method: Universal AC input, 100—240V AC, 50/60 Hz
– Power supply: AC/DC
– Supported voltage range: 100—240V AC
– Max. PoE+ wattage per port by PSE: 60W
– Ambient operating temperature: 0 to 40° C (32 to 104° F)
– Storage temperature: -30 to 70°C (-22 to 158° F)
– Ambient operating humidity: 10 to 95% noncondensing
– Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
