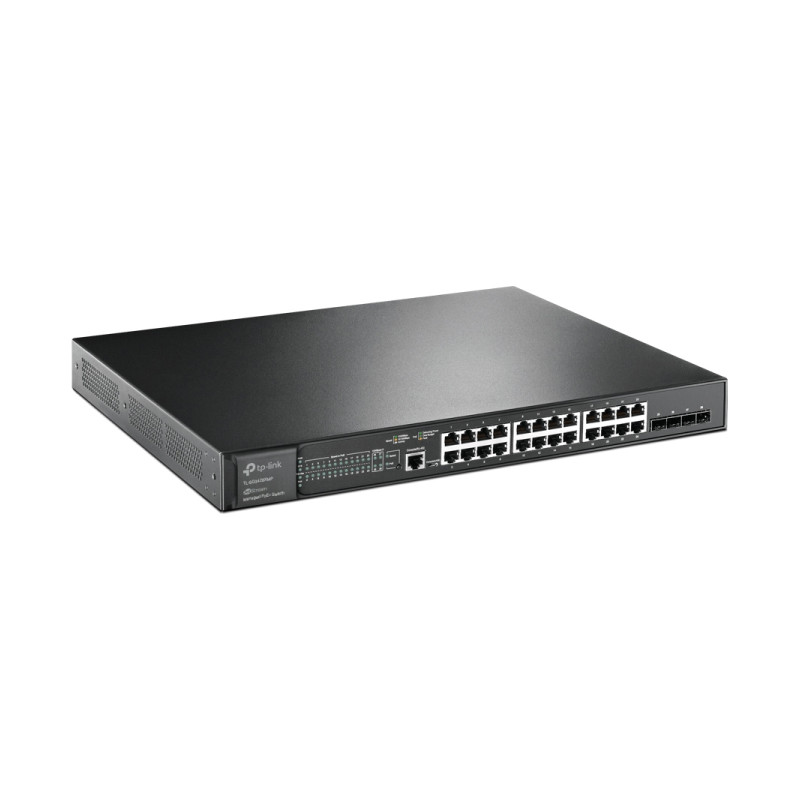

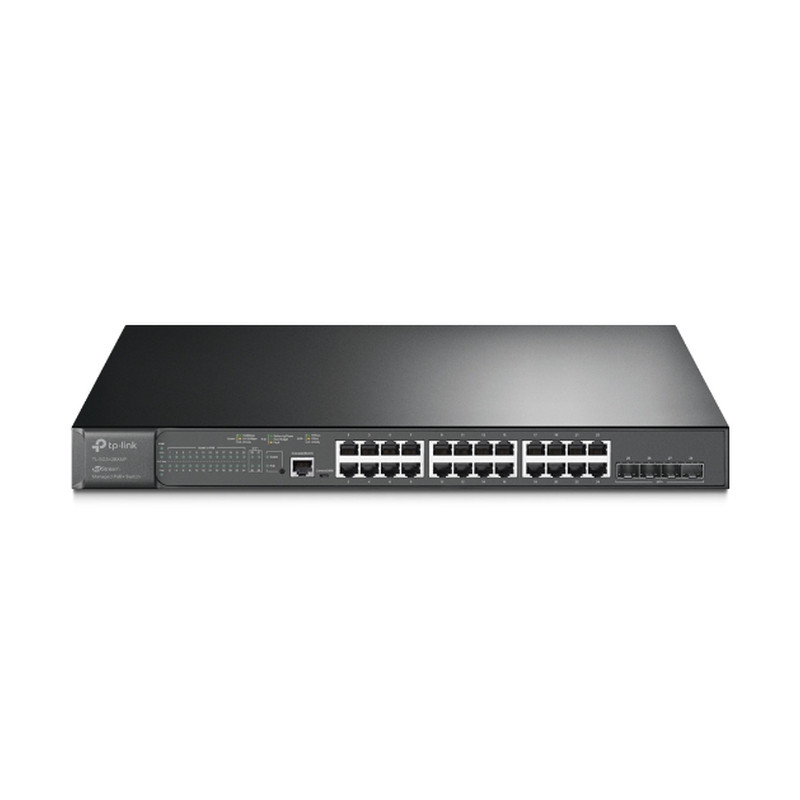

TP-Link Omada JetStream 28-port Gigabit L2+ Smart PoE+ preklopnik (Switch), 24×G-LAN, 4×10G SFP+, RJ45/microUSB console, 19" rack-mount (384W)

Šifra: TL-SG3428XMP

Jamstvo (mj): 5 godina

Dostupnost:

Dostupno kod dobavljača. Isporuka 3-5 dana!


614,00

Dostupno kod dobavljača. Isporuka 3-5 dana!

Usporedi

– 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W – Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections – Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring – Centralized Management: Cloud access and Omada app for ultra convenience and easy management – Static Routing: Helps route internal traffic for more efficient use of network resources – Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more – Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping – Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities Specifications HARDWARE FEATURES – Interface: * 24 10/100/1000Mbps RJ45 Ports * 4 Gigabit SFP Slots * 1 RJ45 Console Port * 1 Micro-USB Console Port – Fan Quantity: 2 – Power Supply: 100-240 V AC~50/60 Hz – PoE+ Ports(RJ45): * Standard: 802.3at/af compliant * PoE+ Ports: 24 Ports, up to 30 W * Power Supply: 384 W – Dimensions ( W x D x H ): 440×180×44 mm – Mounting: Rack Mountable – Max Power Consumption: * 31.0 W (110 V/60 Hz) (no PD connected) * 463.8 W (110 V/60 Hz) (with 384 W PD connected) – Max Heat Dissipation: * 105.78 BTU/h (110 V/60 Hz) (no PD connected) * 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected) PERFORMANCE – Switching Capacity: 56 Gbps – Packet Forwarding Rate: 41.66 Mpps – MAC Address Table: 8K – Jumbo Frame: 9 KB SOFTWARE FEATURES – Quality of Service: * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR * Bandwidth Control: Port/Flow based Rating Limiting * Smoother Performance * Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit,QoS Remark – L2 and L2+ Features: * Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group * Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, BPDU, Protect, Root Protect, Loop Protect * Loopback Detection, Port-based, VLAN based * Flow Control: 802.3x Flow Control, HOL Blocking Prevention * Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both – L2 Multicast: * Supports 511 (IPv4, IPv6) IGMP groups * IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication * IGMP Authentication * MVR * MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast * Multicast Filtering: 256 profiles and 16 entries per profile -VLAN: * VLAN Group: Max 4K VLAN Groups * 802.1q Tagged VLAN * MAC VLAN: 12 Entries * Protocol VLAN: Protocol Template 16, Protocol VLAN 16 * GVRP * VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ * Voice VLAN – Access Control List: * Time-based ACL * MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type * IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority * Combined ACL * Packet Content ACL * IPv6 ACL * Policy: Mirroring, Redirect, Rate Limit, QoS Remark * ACL apply to Port/VLAN – Security * IP-MAC-Port Binding: DHCP Snooping, ARP Inspection, IPv4 Source Guard * IPv6-MAC-Port Binding: DHCPv6 Snooping, ND Detection, IPv6 Source Guard * DoS Defend * Static/Dynamic Port Security: Up to 64 MAC addresses per port * Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode * IP/Port/MAC based access control * 802.1X: Port based authentication, Mac based authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability * AAA (including TACACS+) * Port Isolation * Secure web management through HTTPS with SSLv3/TLS 1.2 * Secure Command Line Interface (CLI) management with SSHv1/SSHv2 – IPv6: * IPv6 Dual IPv4/IPv6 * Multicast Listener Discovery (MLD) Snooping * IPv6 ACL * IPv6 Interface * Static IPv6 Routing * IPv6 neighbor discovery (ND) * Path maximum transmission unit (MTU) discovery * Internet Control Message Protocol (ICMP) version 6 * TCPv6/UDPv6 * IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP – L3 Features: * 16 IPv4/IPv6 Interfaces * Static Routing: 48 static routes * Static ARP * 316 ARP Entries * Proxy ARP * Gratuitous ARP * DHCP Server * DHCP Relay * DHCP L2 Relay – Management: * Web-based GUI * Command Line Interface (CLI) through console port, telnet * SNMPv1/v2c/v3: Trap/Inform, RMON (1, 2, 3, 9 groups) * SDM Template * DHCP/BOOTP Client * 802.1ab LLDP/LLDP-MED * DHCP AutoInstall * Dual Image, Dual Configuration * CPU Monitoring * Cable Diagnostics * EEE * Password Recovery * SNTP * System Log – Advanced Features * Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller * Automatic Device Discovery * Batch Configuration * Batch Firmware Upgrading * Intelligent Network Monitoring * Abnormal Event Warnings * Unified Configuration * Reboot Schedule * ZTP (Zero-Touch Provisioning) OTHERS – Certification: CE, FCC, RoHS – Package Contents: Switch, Power Cord, Quick Installation Guide,Rackmount Kit, Rubber Feet – Environment: * Operating Temperature: 0?~45? (32?~113?); * Storage Temperature: -40?~70? (-40?~158?) * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing

SKU: TL-SG3428XMP Kategorija: Brand:
