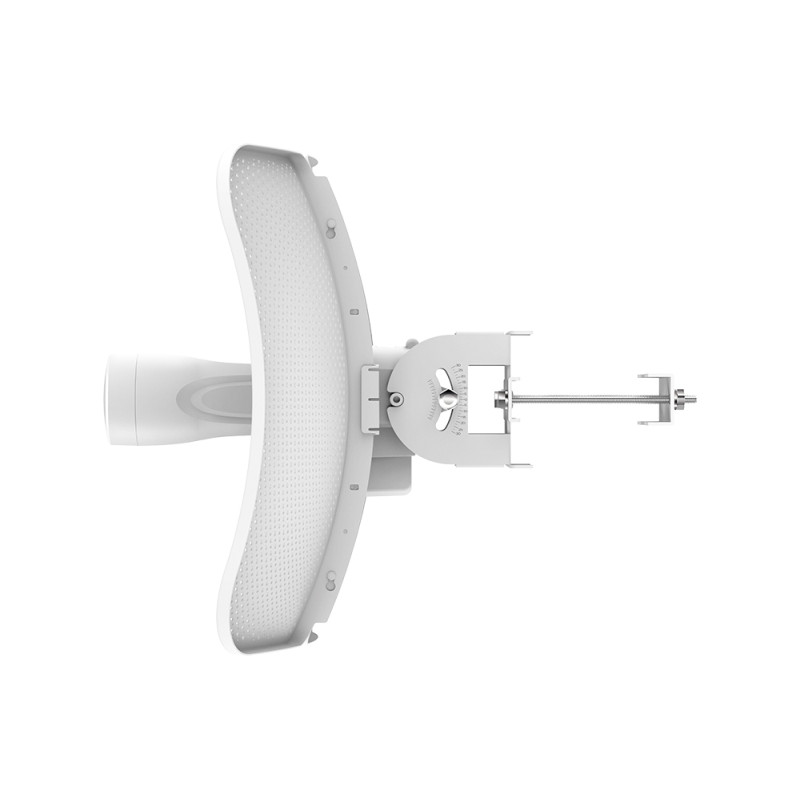

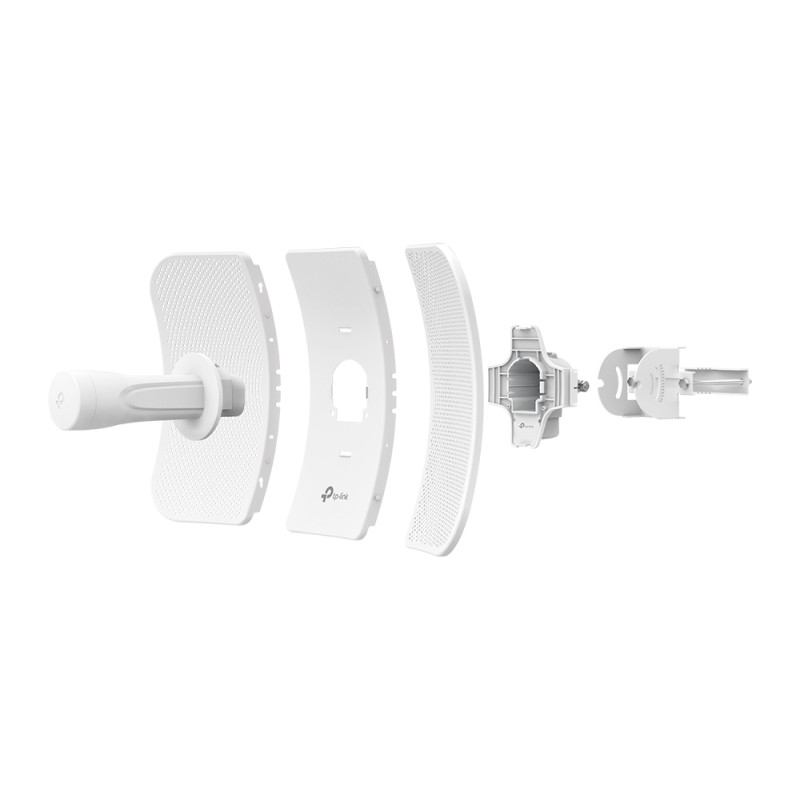

– Up to 300Mbps on 5GHz wireless data rates – 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application – Excellent beam directivity, improved latency and noise cancellation – Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds – Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability – TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance – Pharos Control gives administrators a free, centralized management system – Passive PoE supports to allow flexible deployment and convenient installation Specifications HARDWARE FEATURES – Processor: Qualcomm 560MHz CPU, MIPS 74Kc – Memory: 64MB DDR2 RAM,8MB Flash – Interface: * 1 10/100Mbps Shielded Ethernet Port (LAN/POE) * 1 Reset Button – Power Supply: * Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) * Voltage range: 16-27VDC – Dimensions (W×D×H): 366×280×207 mm (14.4"×11.0"×8.1") – Antenna Gain: 23dBi – Antenna Beamwidth: 9° (Azimuth), 7° (Elevation) – Protection: * 15KV ESD Protection * 6KV Lightning Protection – Enclosure: * Material: Outdoor PC stabilized plastic * Weatherproof: IP65 water and dust proof design WIRELESS FEATURES – Wireless Standards: IEEE 802.11a/n – Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled) – Wireless Speeds: * Up to 300Mbps (40MHz,Dynamic) * Up to 144.4Mbps (20MHz,Dynamic) * Up to 72.2Mbps (10MHz,Dynamic) * Up to 36.1Mbps (5MHz,Dynamic) – Frequency: 5.15 – 5.85GHz – Transmit Power: Max. 25dBm (Adjustable power by 1dBm) SOFTWARE FEATURES – Network Configuration: * WAN: Static/Dynamic/PPPoE/L2TP/PPTP * LAN: Static/Dynamic/DHCP * Forwarding: ALG/UPnP/Virtual Server/Port Trigger * Security: SPI Firewall/ Ping Forbidden/DoS Protection * Access Control * Static Routing * Bandwidth Control * IP & MAC Binding – Wireless Configurations: * Pharos MAXtream TDMA Technology * Selectable Channel Width: 5/10/20/40MHz * Auto Channel Selection * Transmit Power Control * Dynamic Frequency Selection(DFS) * WDS Enable/Disable * Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, * 64/128/152-bit WEP Encryption * SSID Broadcast Enable/Disable * Multi-SSID with VLAN Tagging(AP Mode only) * Distance/ACK Timeout Setting * Wireless MAC Address Filter * Wireless Advanced: * Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia – Management: * Discovery and Remote Management via Pharos Control application * HTTP/HTTPS Web-based management * System log * SNMP Agent(v2c) * Ping Watch Dog * Dynamic DDNS * SSH Server – System Tools: * Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory * Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP * Spectrum Analyzer * Speed Test * Ping * Traceroute – System-level Optimizations: * Optimized IGMP Snooping/Proxy for multicast applications * Hardware watch dog POE ADAPTER FEATURES – Dimensions (W×D×H): 85.8×43.9×29.7 mm – Interfaces: * 1 AC Jack with Earth Ground * 1 10/100Mbps Shielded Ethernet Port (Power + Data) * 1 10/100Mbps Shielded Ethernet Port (Data) – Button: Remote Reset Button – Power Status LEDs: Green – Input: 100-240VAC, 50/60Hz – Output: * 24VDC, 0.6A Max * +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) – Efficiency: >84.29% – Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTHERS – Certification: CE, FCC, IC, RoHS, IP65 – Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide – System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux * Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended – Environment: * Operating Temperature: -40C – 70C (-40F – 158F) * Storage Temperature: -40C – 70C (-40F – 158F) * Operating Humidity: 10% – 90% non-condensing * Storage Humidity: 5% – 95% non-condensing
Bežična – kućna

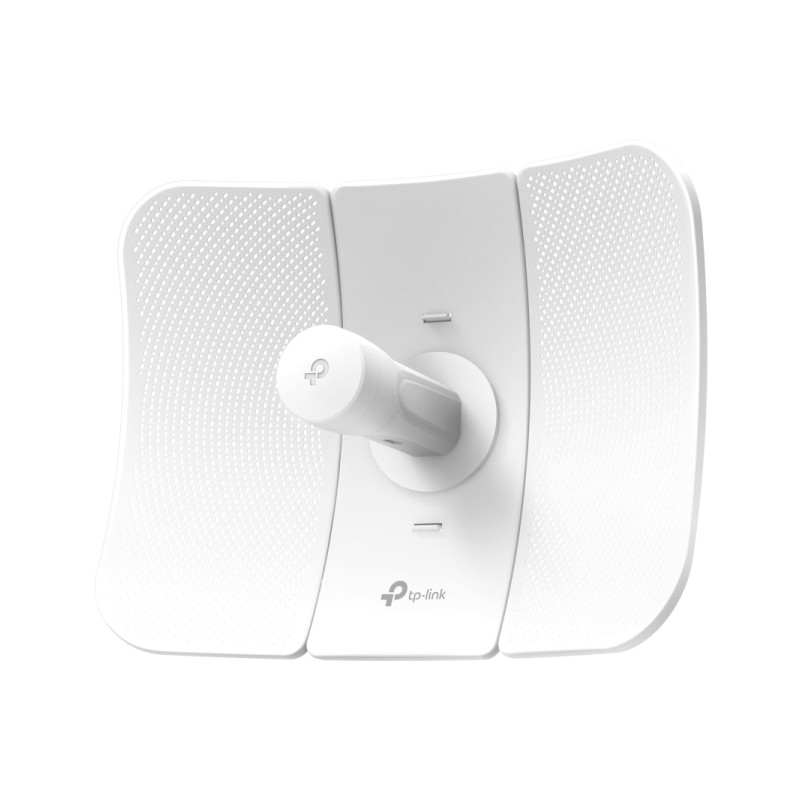

TP-Link bežična pristupna točka vanjska (AP) 300Mbps (5.0GHz), 802.11a/n, podrška za Pasive PoE, 1×LAN, IP65, Pharos MAXtream, 29dBi usmjeriva antena
Jamstvo (mj): 36 mjeseci
Dostupno kod dobavljača. Isporuka 3-5 dana!
74,00€ (557,55 kn)
Dostupno kod dobavljača. Isporuka 3-5 dana!Usporedi
