– DUAL BAND WiFi 6: Separate 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology

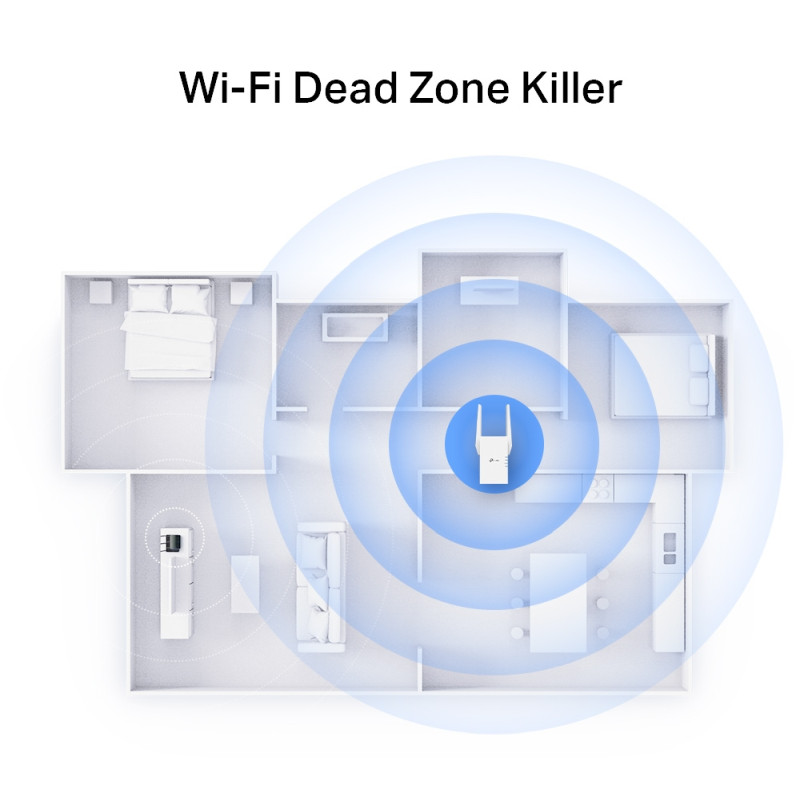

– UNINTERRUPTED STREAMING Easily create a TP-Link OneMesh network for seamless whole home WiFi coverage
– AP MODE: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability

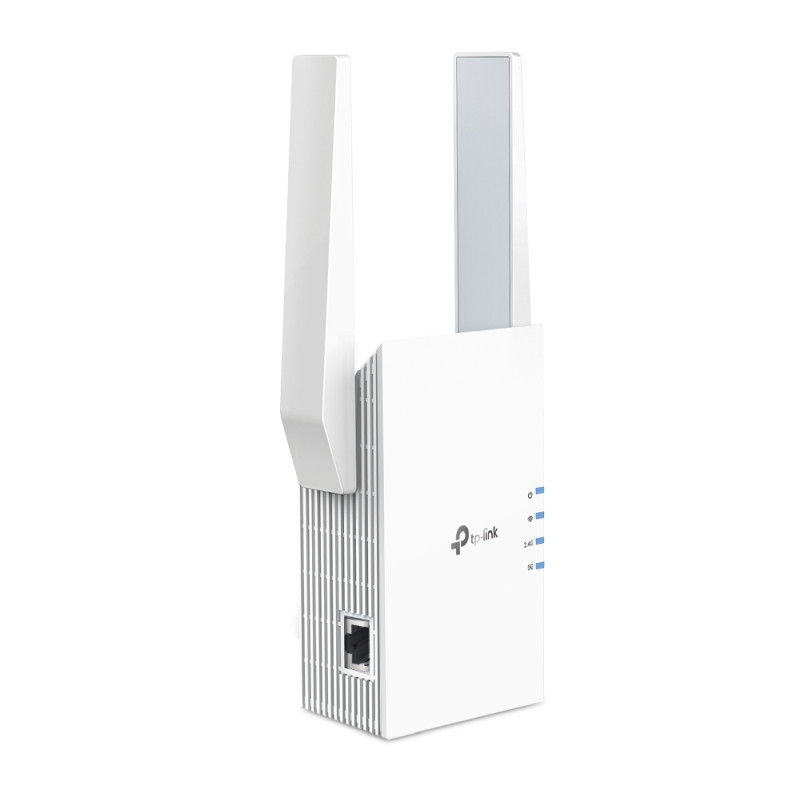

– GIGABIT ETHERNET PORT: Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles
– APP CONTROL: Easy Setup and management with your network using the TP-Link Tether app
Specifications
WIRELESS
– Working Modes: Range Extender / Access Point
HARDWARE FEATURES
– Ports: 1 Gigabit Ethernet Port
– Button: WPS Button, Reset Button
– Input Power: 100-240V~50/60Hz
– Power Consumption: 12.6W
– Dimensions ( W x D x H ): 97*46*158
– Antenna: 2 External Antennas
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
– Frequency: 2.4GHz and 5GHz
– Signal Rate: 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
– Working Modes: Range Extender / Access Point
RECEPTION SENSITIVITY
– 5GHz:
* 11a 6Mbps:-97dBm
* 11a 54Mbps:-78dBm
* 11ax HE20 MCS0: -97dBm
* 11ax HE20 MCS11: -66dBm
* 11ax HE40 MCS0: -94dBm
* 11ax HE40 MCS11: -62dBm
* 11ax HE80 MCS0: -91dBm
* 11ax HE80 MCS11: -61dBm
* 11ax HE160 MCS11: -59dBm
– 2.4GHz:
* 11g 6Mbps:-96dBm
* 11g 54Mbps:-78dBm
* 11ax HE20 MCS0: -95dBm
* 11ax HE20 MCS11: -66dBm
* 11ax HE40 MCS0: -93dBm
* 11ax HE40 MCS11: -62dBm
– Wireless Modes: Range Extender / Access Point
– Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
– Wireless Security: WEP, WPA, WPA2, WPA3
– Transmission Power: CE: 2.4GHz <16dBm, 5GHz <21dBm
– Mesh Technology: EasyMesh-Compatible
NETWORK SERVICES ENABLED BY DEFAULT
– Web Server – Manage and configure device through web (HTTP/HTTPS)
* Port: 80/443 – Protocol: TCP
– DHCP Server – IP address assignment (DHCP)
* Port: 67 – Protocol: UDP
– App management – Manage and configure device through app
* Port: 20001 – Protocol: TCP
* Port: 20002 – Protocol: UDP
OTHERS
– Certification: CE, RoHS
– Package Contents: Wi-Fi Range Extender RE705X, Quick Installation Guide
– System Requirements:
* Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/ 8/8.1/10, MAC OS, NetWare, UNIX or Linux
* Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
