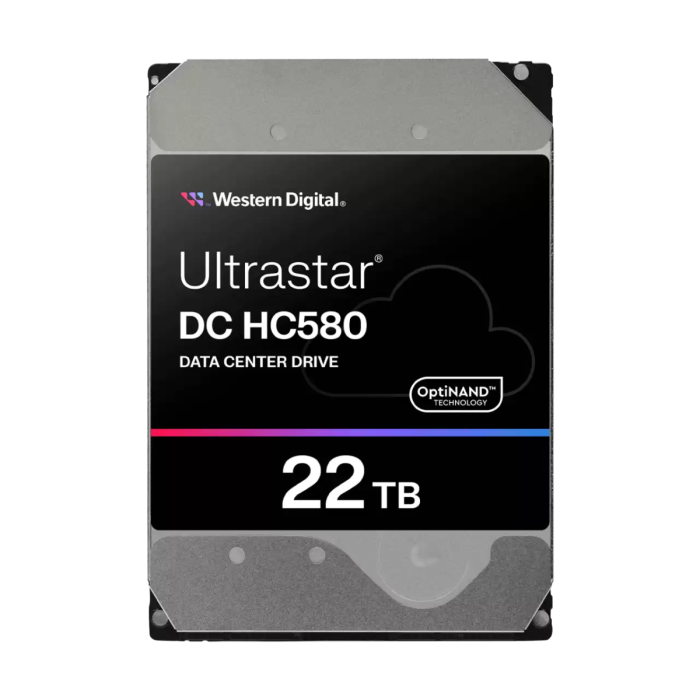

HGST/WD 22TB UltraStar DC HC580 3.5″ SATA 6Gb/s 7200rpm 512MB HDD drive

The Ultrastar DC HC580 model WUH722422ALE6L4 0F62785 is designed for high performance and reliability in demanding data centers. It offers up to 22 TB of storage in a standard 3.5-inch form factor, with a rotation speed of 7200 RPM, SATA 6 Gb/s interfaces, and a large 512 MB cache. The drive uses advanced technologies such as OptiNAND, HelioSeal, TSA (three-stage actuator), and ArmorCache to increase efficiency, durability, and protection against data loss during power outages. It is designed for 24/7 continuous operation, with an annual workload factor of up to 550 TB and an MTBF of up to 2.5 million hours — ideal for large data solutions, RAID arrays, or archive systems.

Specifications:
Model: WUH722422ALE6L4 0F62785
Capacity: up to 22 TB
Form factor: 3.5″ internal drive
Interface: SATA 6 Gb/s
Rotational speed: 7200 RPM
Cache: 512 MB
Recording technology: CMR
Operation: 24/7
MTBF: up to 2.5 million hours
Annual workload: up to 550 TB/year
Dimensions: 147 × 101.6 × 26.1 mm
Weight: approx. 670 g
