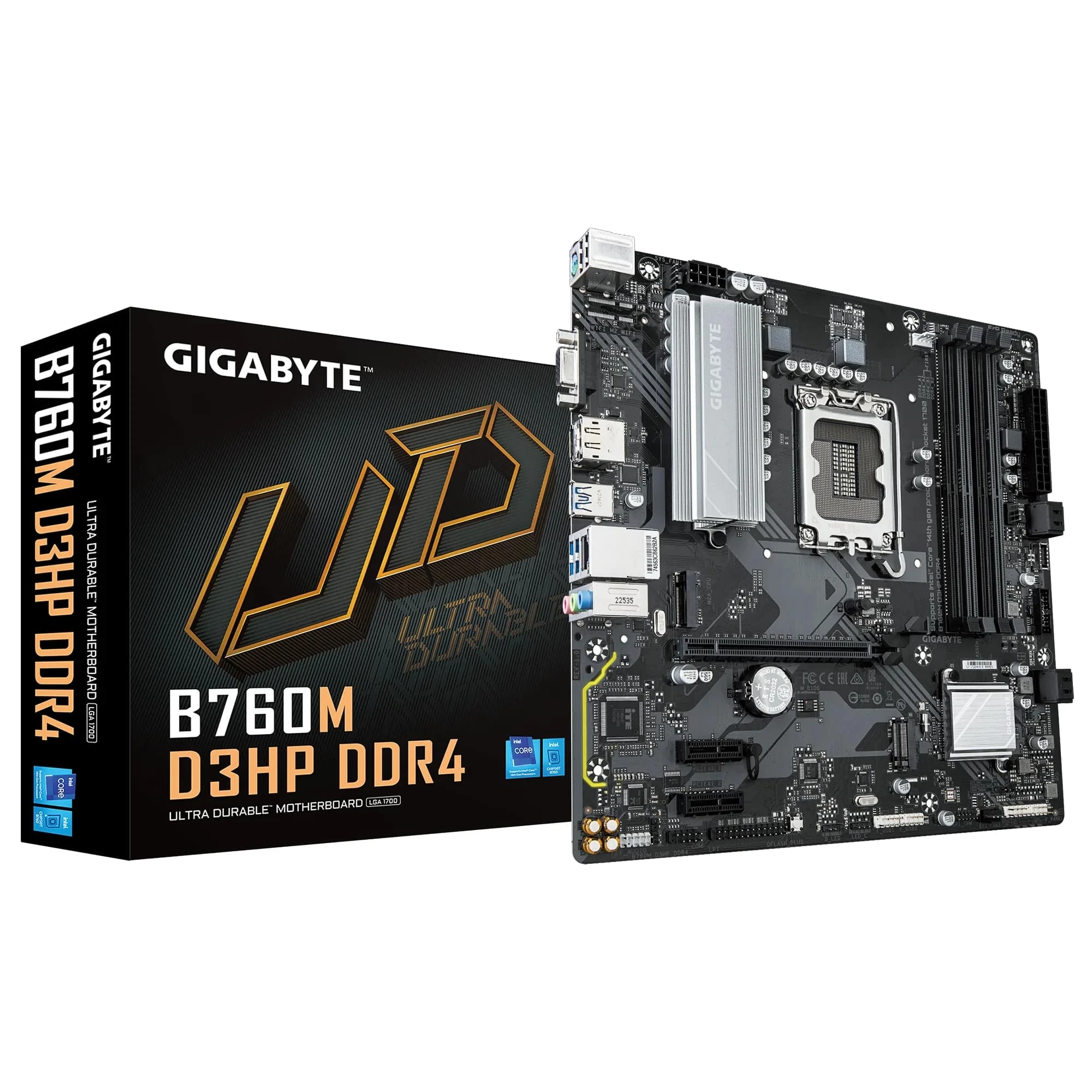

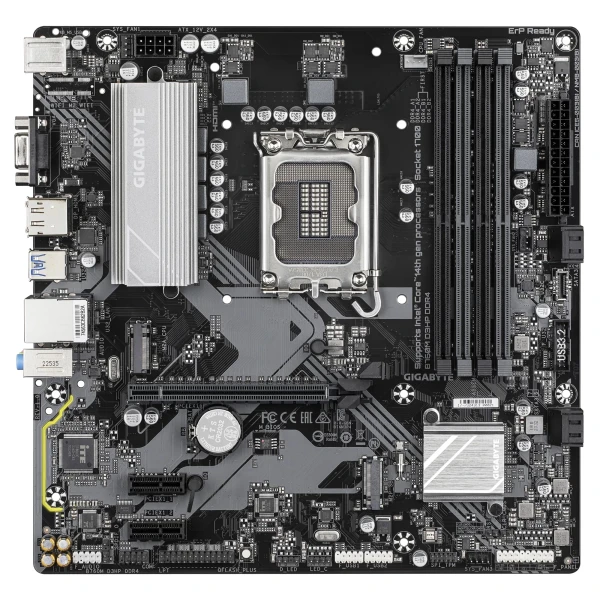

Gigabyte MB B760M DS3HP DDR4, S.1700, 4xDDR4/5333(OC), PCIe 4.0, G-LAN, VGA/HDMI/DP, mATX
Šifra: 76161
Jamstvo (mj): 36 mjeseci
Dostupno kod dobavljača. Isporuka 3-5 dana!
109,00€
Dostupno kod dobavljača. Isporuka 3-5 dana!
Specifikacije
– Podnožje: Intel LGA1700
– Podržani procesori: Intel 14., 13. i 12. gen Core™, Pentium Gold, Celeron
– Čipset: Intel B760
– Memorija: 4× DDR4 DIMM, do 128 GB, dvokanalna, non-ECC, XMP
– Brzina memorije: DDR4 2133 – 5333 MHz (OC)
– Integrirana grafika: Intel HD Graphics (ovisno o procesoru)
– Video izlazi: HDMI 2.1, DisplayPort 1.2, D-Sub
– Podrška za više zaslona: do 3
– Zvuk: Realtek HD Audio, do 7.1, S/PDIF
– Mreža: Realtek Gigabit LAN
– Utori za proširenje:1× PCIe 4.0 x16, 2× PCIe 3.0 x1
– Pohrana: 2× M.2 (PCIe 4.0 x4/x2), 4× SATA 6 Gb/s
– RAID podrška: RAID 0 / 1 / 5 / 10
– USB priključci: USB Type-C, USB 3.2 Gen 1, USB 2.0
– Posebne značajke: Q-Flash, Q-Flash Plus, GIGABYTE Control Center
– Podrška za operativne sustave: Windows 10 / 11 (64-bit)
– Format: Micro ATX (24.4 × 24.4 cm)
