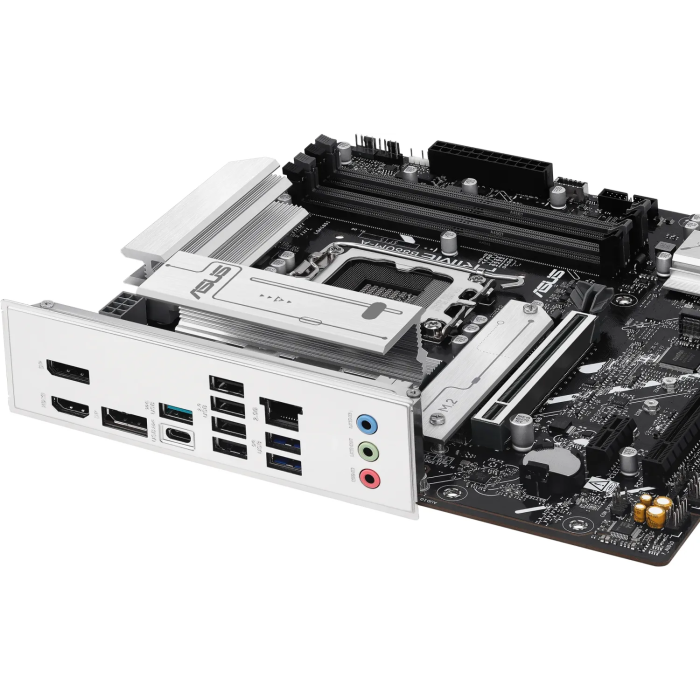

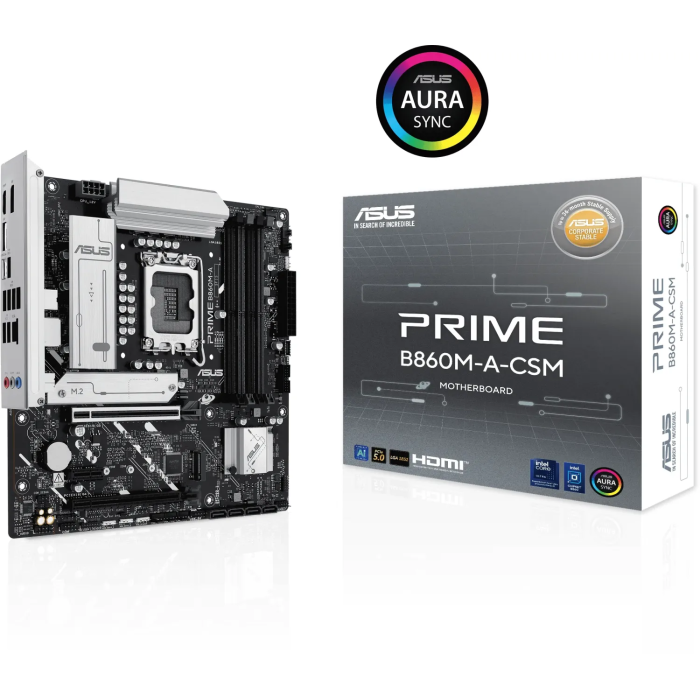

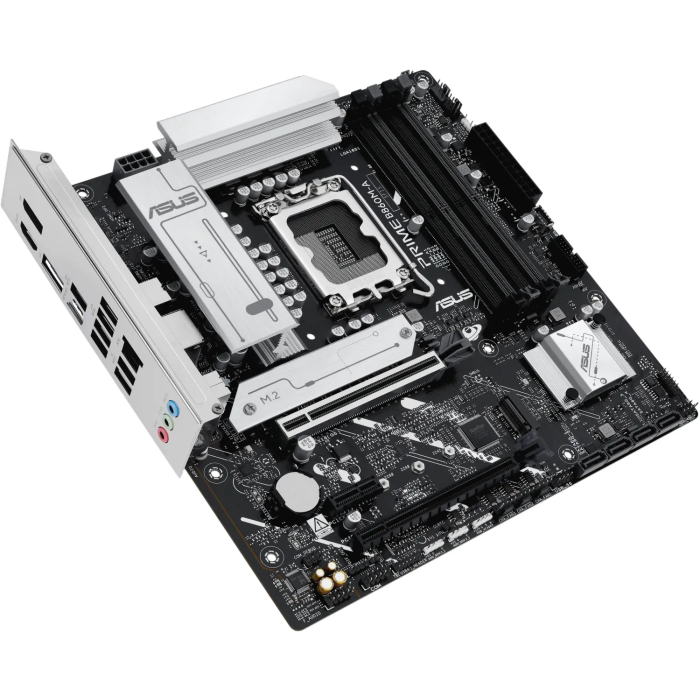

ASUS PRIME B860M-A-CSM, DDR5, SATA3, USB4, DP, 2.5GbE, LGA1851 mATX

SOCKET: INTEL LGA 1851
FOR PROCESSORS: Intel® Core™ Ultra Processors (Series 2)
FORMAT: mATX format 24.4 cm x 24.4 cm
CHIPSET: INTEL B860
MEMORY:
4 x DDR5 DIMM ECC/non-ECC up to 8666+ MHz ) up to a total capacity of 256GB, dual channel and XMP support , ASUS Enhanced Memory Profile III (AEMPIII)
GRAPHICS: YES – via CPU
RAID: YES Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
EXPANSION SLOTS:
Intel® Core™ Ultra Processors (series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
NETWORK CARD: Realtek 2.5GbE LAN chip with ASUS LANGuard
SOUND CARD: Realtek 7.1 Surround Sound High Definition Audio CODEC
INTERNAL CONNECTORS:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Misc
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

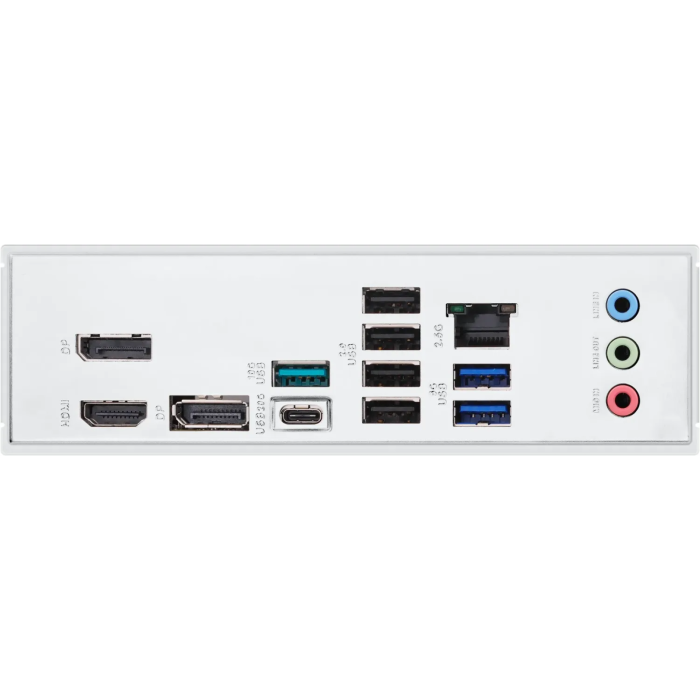

EXTERNAL CONNECTORS:
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
ADDITIONAL:

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey

Manufacturer’s website: https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/
