Optičke mreže pasivne
Prikazujemo 106–120 od 143 rezultata
-
Optičke mreže pasivne

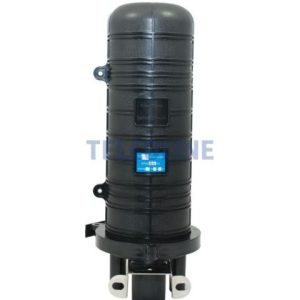

NFO Splice Closure 3 round entries, 1 oval, 6 trays, Height 420 mm
NFO Splice Closure 3 round entries, 1 oval, 6 trays, Height 420 mm – External diameter of the hood: 120 mm Housing material: Polypropylene (PP) Number of trays optical fiber cassettes: 6 Maximum number of welds: 144 (6×24) Number of ports: 4 (3 round 1 oval) Int. Diameter round ports: 20 mm Inside dimensions, oval port: 46×23 mm Working temperature: – 40 C 65 C Tightness class: IP68 Equipment: Trays: 6, Cable port seals, Bracket bracket for pole mounting, Insulation tape, Splice covers: 144
Šifra: NFO-SCL-61005 -
Optičke mreže pasivne

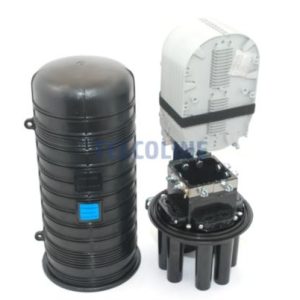

NFO Splice Closure 6 round, 1 oval, 384F
NFO Splice Closure 6 round, 1 oval, 360F – Height: 560 mm Hood diameter: 180 mm Housing material: Polypropylene (PP) Number of fiber optic trays cassettes: 8 Tray capacity: 48 splices Maximum number of splices: 384 Number of ports: 7 (6 round 1 oval) Internal diameter of round ports: 6xO29 mm Dimensions of oval port: 70×44 mm Operating temperature: – 40 C 65 C Tightness class: IP68 Weight: 3 kg Set components: Fiber optic cassettes (trays) : 8 Splice protectors: 360 Cable heat shrink sleeves: 7 Fiber clip Ground cable Cable ties Sandpaper Pole mounting clamp Wall mounting bracket Insulating tape Markers
Šifra: NFO-SCL-61027 -
Optičke mreže pasivne
NFO Splice Closure 7 round entries, 1 oval, 4 trays, Height 500 mm
NFO Splice Closure 7 round entries, 1 oval, 4 trays, Height 500 mm – External diameter of the hood: 180 mm Housing material: Polypropylene (PP) Number of trays optical fiber cassettes: 6 Maximum number of welds: 144 (6×24) Number of ports: 8 (6 round 1 oval) Int. Diameter round ports: 25 mm Internal dimensions Oval port: 82×46 mm Working temperature: – 40 C 65 C Tightness class: IP68 Equipment: Trays: 6, Cable port seals, Bracket bracket for pole mounting, Insulation tape, Splice covers: 144
Šifra: NFO-SCL-61002 -
Optičke mreže pasivne
NFO Splice Closure 96F, 4 round entries, 1 oval, 4 trays, Height 450 mm, Pole and Wall mount
Optičke mreže pasivneNFO Splice Closure 96F, 4 round entries, 1 oval, 4 trays, Height 450 mm, Pole and Wall mount
NFO Splice Closure 96F, 4 round entries, 1 oval, 4 trays, Height 450 mm, Pole and Wall mount Material: Polypropylene PP Color: Black Cover diameter: 160 mm Weight: 4 kg Protection: IP68 4 splice trays Max. 96 fiber optic splice sleeves Operating temperature: -35 C 65 C Application: Aerial, duct, ground installations Equipment: Wall mounting bracket, Clamp for pole mounting, Fiber optic splice sleeve (x96), Heat shrink sleeve (x5), Insulation tape, Fiber clip
Šifra: NFO-SCL-61032 -
Optičke mreže pasivne
NFO Splice Closure Mini, for Drop Cables, 1 splice
NFO Splice Closure Mini, for Drop Cables, 1 splice – Plastic resistant to UV radiation, high impact resistance, low abrasion and water absorption Very light, small and simple construction allows to place the weld in a quick and practical way Removable rubber gasket ensures tightness No tools needed Dimensions: 100 x 10 x 12 mm Possibility of placing a cable with an outer diameter from 2 to 3 mm
Šifra: NFO-SCL-61017 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs outputs, 4F, Horizontal
NFO Splice Closure, 2 inputs outputs, 4F, Horizontal – perfect for FTTH network installations. It is the first choice when it is necessary to repair DAC cables It can be used directly in the ground, in wells, cable ducts, cable reserve bunkers, as well as in external installations. Dimensions: 165x65x25 mm , Material: PC ABS, UV resistant casing, Protection class: IP65 Cable entry seals through rubber sleeves, Sealing of the socket through a gasket around the entire circumference, Clamps fixing the incoming cable, Places for fiber optic splices: 2 4 Kit components: Repair sleeve, Splice covers: 4 (length 40 mm), Mounting pins and screws: 2
Šifra: NFO-SCL-61025 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs, 12 outputs, Wall mount
NFO Splice Closure, 2 inputs, 12 outputs, Wall mount – Technical data: Dimensions: 70mm x 240mm ( 10mm lock) x 230mm Weight: approx. 1.4 kg Operating temperature in the range of -40 60 C Integrated splice tray – tiltable Protection level: IP65 Color: gray Set Components: Splice covers, Plastic clamps, Protective tube for distributing fibers, Pins and screws for wall mounting, Key for closing the door, Insulating tape, Rubber sleeves for subscriber outputs
Šifra: NFO-SCL-61037 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs, 16 outputs, Wall or Pole mount
NFO Splice Closure, 2 inputs, 16 outputs, Wall or Pole mount – Working temperature in the range -40 60 C Tray for welds – tilting Protection degree: IP65 Equipment: Splice covers, Plastic clamps, Protective tube for the distribution of fibers, Output chokes for consumer cables, Pins and screws for wall mounting, Key for closing the door
Šifra: NFO-SCL-61010 -
Optičke mreže pasivne
NFO Splice Closure, 2 inputs, 2 outputs, 12F
NFO Splice Closure, 2 inputs, 2 outputs, 12F – overhead, underground and sewage installations maximum cable diameter for each of the four holes is 15 mm Specification: Dimensions: 249x153x30 mm, Weight: 0.8 kg, Material: Stainless steel ABS plastic, 2 inputs 2 outputs, IP protection class: 65, Splice tray capacity: 12, Possibility to install cable glands The set includes: Tray of splices, Splice covers: 12, Insulating tape, Double-sided adhesive tape, Mounting screws (x8), Plastic clamps, Mounting key
Šifra: NFO-SCL-61023 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs outputs, 12F Horizontal
NFO Splice Closure, 4 inputs outputs, 12F Horizontal – Weight: 0.5 kg Number of trays: 1x, 12 splices Number of ports: 4 (2 x input, 2 x output) Int. ports: 2 x 12.6 mm, 2 x 16.3 mm (It is possible to put plugs on unused ports) Dimensions: 215 x 202 x 43 mm Housing material: Polypropylene (PP) Working temperature: – 40 C 65 C Protection class: IP68 Elements of the set:Fiber optic cassettes (trays) 1x, Splice covers, Clamping bands, Insulating tape, Muffle grip, Allen key for screws, Plugs for large ports, Plastic key for screws holding the cable
Šifra: NFO-SCL-61020 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs outputs, 48F Horizontal
NFO Splice Closure, Horizontal, 4 inputs outputs – 48 Fiber horizontal fiber optic splice closure provides long-term protection for splices and branching applications against external influences. It is equipped with 4x 16mm inputs outputs. It is made of high quality plastic resistant to low (-40 C), high ( 65 C) temperature and UV radiation. The flat design allows it to be used in locations with limited space. It has been designed in such a way that its installation is quick and easy. Dimensions: 340x150x70 mm Weight: 2kg Equipment: – keys for opening closing – fastening tape, – sealing tape, – welding covers, – sandpaper, – self-adhesive labels, – hanging hooks,
Šifra: NFO-SCL-61013 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs, 16 outputs, Wall and pole mount
NFO Splice Closure, 4 inputs, 16 outputs, Wall and pole mount – ideal solution for overhead, underground and sewage installations The device has 4 tiltable fiber optic trays with the possibility of arranging up to 24 splices on each Equipped with space for mounting 24 SC simplex or LC duplex fiber optic adapters Technical data: Dimensions: 388mm x 242mm x 128mm Material: Polypropylene PP Weight: approx. 4 kg Color: Black Number of splice trays: 4 Max. number of splices: 96 Number of places for adapters: 24 x SC simplex or LC duplex Protection level: IP67 Operating temperature: from -30 C to 80 C The set includes: Splice covers (length 60 mm), Protective tubes for fiber distribution, Metal clamps, Metal support for sleeve installation, Mounting screws, Insulating tape (black), Plastic cable ties, Through port caps, Alkopad (alcohol wipe), Port gland wrench
Šifra: NFO-SCL-61038 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs, 16 outputs, Wall or Pole mount
NFO Splice Closure, 4 inputs, 16 outputs, Wall or Pole mount – four inputs for bus cables and 16 outputs for subscriber cables Its design allows easy installation of splitters and adapters as well as good access to splice placement and fiber organization. Dimensions: 286mm x 182mm x 78mm Weight: approximately 1 kg Operating temperature in the range -40 60 C Integrated splice tray – tiltable Number of trays: 3×12 splices (32 welds) Protection level: IP65 White color Set Components: Splice covers, Plastic clamps, Protective tube for distributing fibers, Pins and screws for wall mounting, Key for closing the door, Insulating tape
Šifra: NFO-SCL-61035 -
Optičke mreže pasivne
NFO Splice Closure, 4 inputs, 24 outputs, Wall and pole mount
NFO Splice Closure, 4 inputs, 24 outputs, Wall and pole mount – ideal solution for overhead, underground and sewage installations. The device has 6 tiltable fiber optic trays with the possibility of arranging up to 24 splices on each Technical data: Dimensions: 388mm x 242mm x 150mm Material: Polypropylene PP Weight: approx. 5 kg Color: Black Number of splice trays: 6 Max. number of splices: 144 Number of places for adapters: 24 x SC simplex or LC duplex Max. diameters of input cables: 2×18 mm, 2×21 mm Diameters of holes in rubber sleeves for client cables: 3 mm Protection level: IP67 Operating temperature: from -30 C to 80 C Included in the set: Splice covers (60 mm long), Protective tubes for fiber distribution, Metal clamps, Metal bracket for installing the sleeve, Mounting screws, Plastic clamps, Through port caps, Alkopad (alcohol wipe), Port choke wrench
Šifra: NFO-SCL-61039 -
Optičke mreže pasivne
NFO Splice Closure, 4 round and 1 oval input output, pole and wall mount
NFO Splice Closure, 4 round and 1 oval input output, pole and wall mount – Height: 445 mm, Hood diameter: 160 mm, Housing material: Polypropylene (PP), Number of trays: 2, Maximum and number of trays: 4, Maximum number of welds: 96 (4×24), Number of ports: 4 (4 round 1 oval), Inner diameter. round ports: 20 mm, Internal dimensions oval port: 33×63 mm, Working temperature: -35 C 65 C, Protection class: IP68 Kit components: 2 pcs fiber optic cassettes (trays), Welding covers, Heat-shrinkable cable covers, Fiber clip , Clamping bands (steel) , Wall bracket, Mounting clamps, Insulating tape, Numbering stickers
Šifra: NFO-SCL-61014
