NFO Metal distribution box 92x SC Simplex LC Duplex – Dimensions: 485 x 425 x 208 mm Weight: 8,2 kg Protection level: IP65 Accessories included: Four trays of splices 12 24, Splice covers: 48, Protective tube, Insulating tape, Plastic clamps, Metal clamps (U-bolts): 2, Pole mounting bracket, Metal clamps for the bracket: 2 Powder coated (electrostatic spray) gray, it will ensure resistance to corrosion as well as low and high temperatures in the case of outdoor installations.

NFO Mounting to the mounting tray, screwed to the cable reserve frame for NFO-SCL-61038 NFO-SCL-61039 – for trays screwed to the cable reserve frame The mounting is screwed directly to the sleeve using four M8 screws. The mounting has special holes for installing a tray that can be screwed to the cable reserve frames Material: Aluminum Dimensions: 240x160x2 mm

NFO Optical power meter – The APM65T meter is a device designed for quick and easy testing of optical power in PON networks. Calibration for wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm allows work with single-mode and multi-mode fibers. The meter’s measurement range is -70 to 6 dBm , measurement accuracy is 0.15dB, and resolution is 0.01dB PON network testing Connector: SC or FC Power supply: AA*2 batteries Battery life: up to 160h Dimensions: 107x50x28 mm Weight: 70 Operating temperature: -10 C – 50 C Integrated LED night light

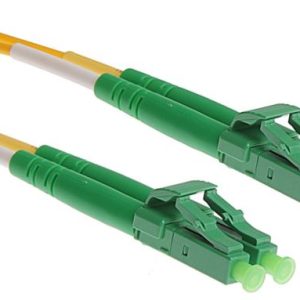

NFO Patch cord – LC APC-LC APC, Singlemode 9 125, Fiber type: G.657.A2, Cable diameter 2mm, LSZH, Duplex, 1m

NFO Patch cord – LC APC-LC APC, Singlemode 9 125, G.657A2, 2mm, Simplex, LSZH, 3m
