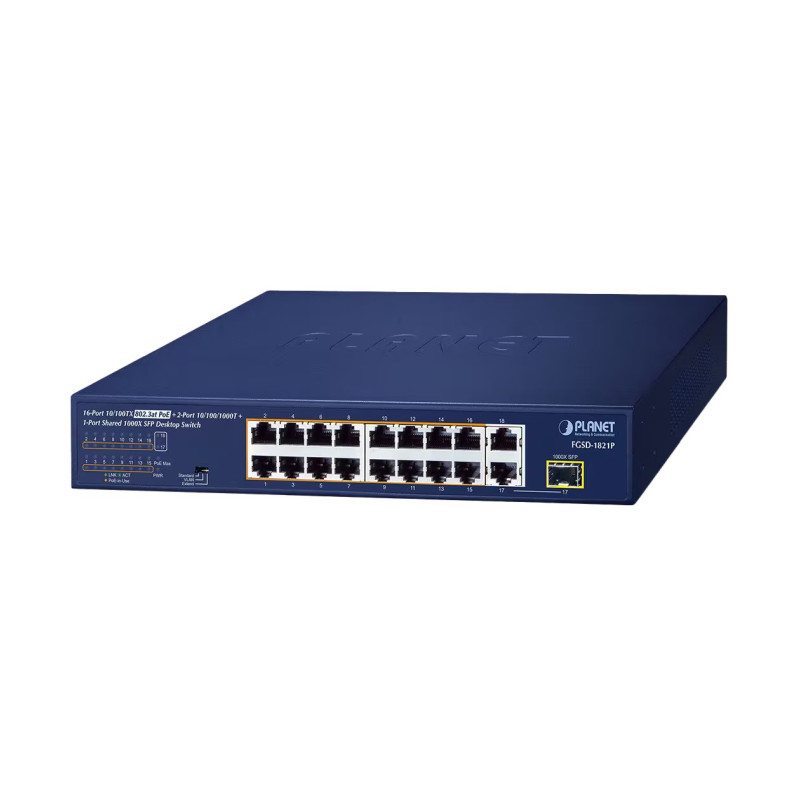

PLANET PoE preklopnik (Switch) 16-port 10/100Mbps + 2-porta 10/100/1000T + 1-port djeljivi 1000X SFP, rackmount kit

Šifra: FGSD-1821P

Jamstvo (mj): 24 mjeseca


Dostupno kod dobavljača. Isporuka 3-5 dana!


Dostupno kod dobavljača. Isporuka 3-5 dana!

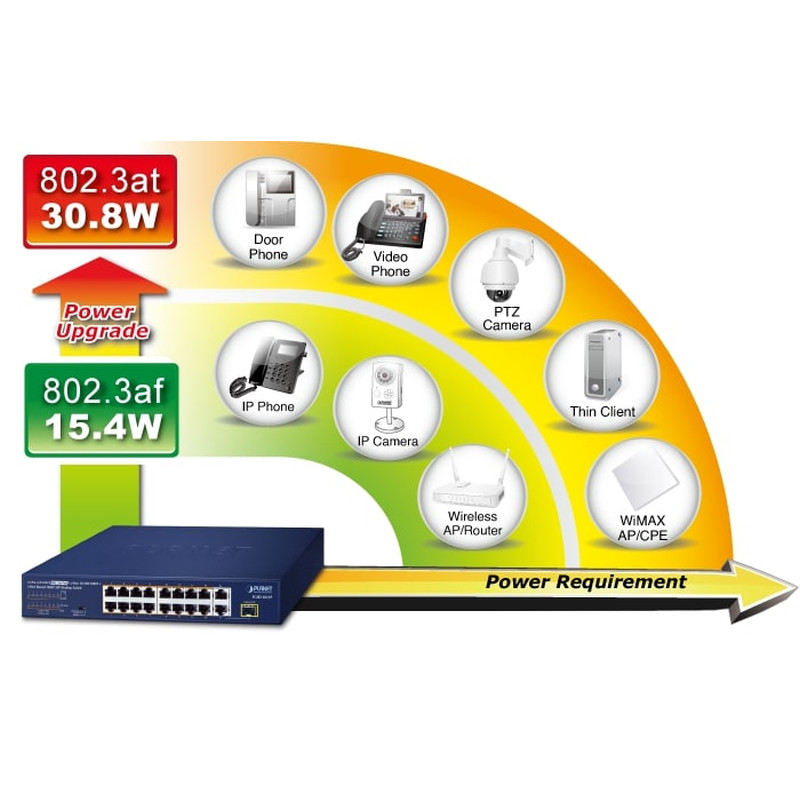

– Cost-optimized, Multi-mode Ethernet Switch for PoE Networking – Two Gigabit Uplink Ports – Perfect Integrated Solution for PoE IP Surveillance – Ethernet Data Transmission Distance Extension – Powered Device Alive Check – Flexible Extension Solution Key Features PHYSICAL PORT – 16× 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector function (ports 1-16) – 2× 10/100/1000BASE-T Gigabit RJ45 ports interfaces (ports 17-18) – 1× 1000BASE-X SFP interface (port 17) POWER OVER ETHERNET – Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE – Up to 16 ports of IEEE 802.3af/802.3at devices powered (ports 1-16) – Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 185W – Each port supports 55 DC power to PoE powered device – Auto detects powered device (PD) – Supports PD alive function – Circuit protection prevents power interference between ports – Remote power feeding up to 100m in standard mode with 250m in extend mode SWITCHING – Hardware-based 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X – Supports IEEE802.3x flow control in full-duplex mode and backpressure in half-duplex mode – Integrates address look-up engine, supporting 16K absolute MAC addresses – 16K jumbo frame supports 1000Mbps speed – Hardware-based DIP switch for Standard, VLAN or Extend mode selection * VLAN mode: Ports 1 to 16 cannot communicate with each other, but can communicate with the uplink ports 17 to 18 and SFP port 17 * Extend mode: Ports 1 to 8 have data rate of 10Mbps. The farthest transmission distance is up to 250 meters and all ports can communicate with each other – VLAN mode is to isolate ports to prevent broadcast storm and defend DHCP spoofing – Automatic address learning and address aging – Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) HARDWARE – 11-inch desktop size, 1U height – LED indicators for system power, per port PoE ready and PoE activity, speed, link/act – 1 silent fan to provide stable and efficient power performance – Supports contact discharge of ±6KV DC and air distance discharge of ±8KV DC for Ethernet ESD protection – Supports ±6KV surge immunity Specifications HARDWARE – Fast Ethernet Copper Ports: 16× 10/100BASE-TX RJ45 auto-MDI/MDI-X ports – Gigabit Ethernet Copper Ports: 2× 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-17 shared with SFP port) – SFP Ports: 1× 1000BASE-SX/LX/BX SFP interface (shared with Port-17) – DIP Switch: Selectable operation mode (Standard / VLAN / Extend) – Dimensions (W×D×H): 280×180×44 mm (1U height) – Enclosure: Metal – Weight: 1800g – Power Requirements: 100-240V AC, 50/60Hz, 5A max. – Power Consumption/Dissipation: Max. 207 watts/706 BTU – Thermal Fan: 1 – ESD Protection: Contact discharge of +/-6KV DC, Air discharge of +/-8KV DC – Surge Protection: Differential Mode +/-4KV, Common Mode +/-6KV – Installation: Desktop or rack-mount installation – LED Indicators: * System: Power (Green), PoE Max. (Green) – 10/100/1000T RJ45 Interfaces: 10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber) – 1000X SFP Interfaces: 1000 LNK / ACT (Green) SWITCHING – Switch Architecture: Store-and-Forward – Switch Fabric: 7.2Gbps/non-blocking – Switch Throughput@64bytes: 5.36Mpps – MAC Address Table: 16K entries – Jumbo Frame: 16K bytes – Flow Control: IEEE 802.3x pause frame for full duplex; back pressure for half duplex POWER OVER ETHERNET – PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE – PoE Injector Ports: 16 – PoE Power Supply Type: End-span: 1/2 (+), 3/6 (-) – PoE Power Output: Per port 55V DC, 600mA. max. 32 watts – PoE Power Budget: 185 watts – Number of PDs, 7 watts: 16 – Number of PDs, 15.4 watts: 12 – Number of PDs, 30 watts: 6 STANDARDS CONFORMANCE – Regulatory Compliance: FCC Part 15 Class A, CE – Standards Compliance: * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX * IEEE 802.3ab Gigabit 1000BASE-T * IEEE 802.3z Gigabit SX/LX * IEEE 802.3x flow control and back pressure * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus * IEEE 802.3az Energy-Efficient Ethernet ENVIRONMENT – Operating * Temperature: 0C to 50C * Relative Humidity: 5% to 95% (non-condensing) – Storage: * Temperature: -10C to 70C * Relative Humidity: 5% to 95% (non-condensing)

SKU: FGSD-1821P Kategorija: Brand:
