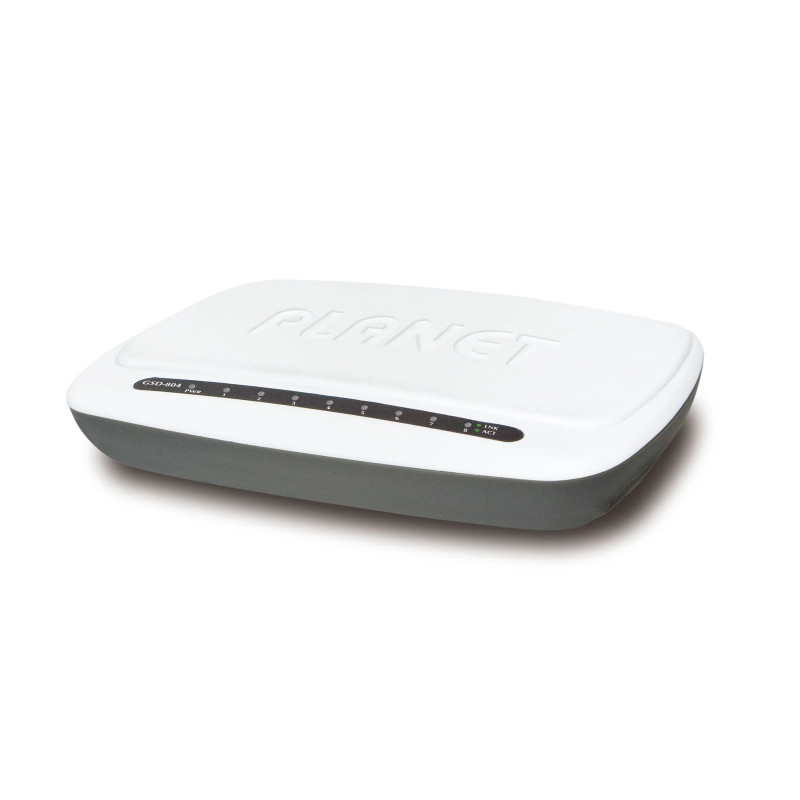

PLANET Gigabit preklopnik (Switch) 8-port 10/100/1000Mbps

Šifra: GSD-804

Jamstvo (mj): 24 mjeseca


Dostupno kod dobavljača. Isporuka 3-5 dana!


Dostupno kod dobavljača. Isporuka 3-5 dana!

Key Features – Eight 10/100/1000Mbps Gigabit Ethernet ports – Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T – Supports auto MDI/MDI-X function – Hardware-based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation – Features Store-and-Forward mode with wire-speed filtering and forwarding rates – IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation – Integrated address look-up engine, supporting 8K absolute MAC addresses – 9K Jumbo packet size – Power saving ability for Green networking – Automatic address learning and address aging – Supports CSMA/CD protocol Made from plastic, desktop size and wall-mount design – LED indicators for system power, per port Link / Act – 5V DC, 1A external power adapter – FCC, CE Class B compliant SPECIFICATION HARDWARE SPECIFICATION – Hardware Version: 7 – 10/100/1000Base-T Ports: 8 auto MDI/MDIX ports – LED Display: One for Power, One for Link / Act per port – Enclosure: Plastic – Dimensions (W×D×H): 168×100×29mm – Weight (g): 175g – Power Requirements (External power adapter): 5V DC, 1A – Power Consumption (100M full operation): 4 watts / 13 BTU SWITCH SPECIFICATIONS – Switch Processing Scheme: Store-and-Forward – Address Table: 8K – Flow Control: * Back pressure half duplex * IEEE 802.3x pause frame full duplex – Switch Fabric: 16Gbps – Throughput (packet per second): 11.9Mpps – Jumbo packet size: 9K STANDARD CONFORMANCE – Regulation Compliance: FCC Part 15 Class B, CE – Standards Compliance: * IEEE 802.3 (Ethernet) * IEEE 802.3u (Fast Ethernet) * IEEE 802.3ab(Gigabit Ethernet) * IEEE 802.3x (Full-duplex flow control) * IEEE 802.3az Energy Efficient Ethernet (EEE)

SKU: GSD-804 Kategorija: Brand:
